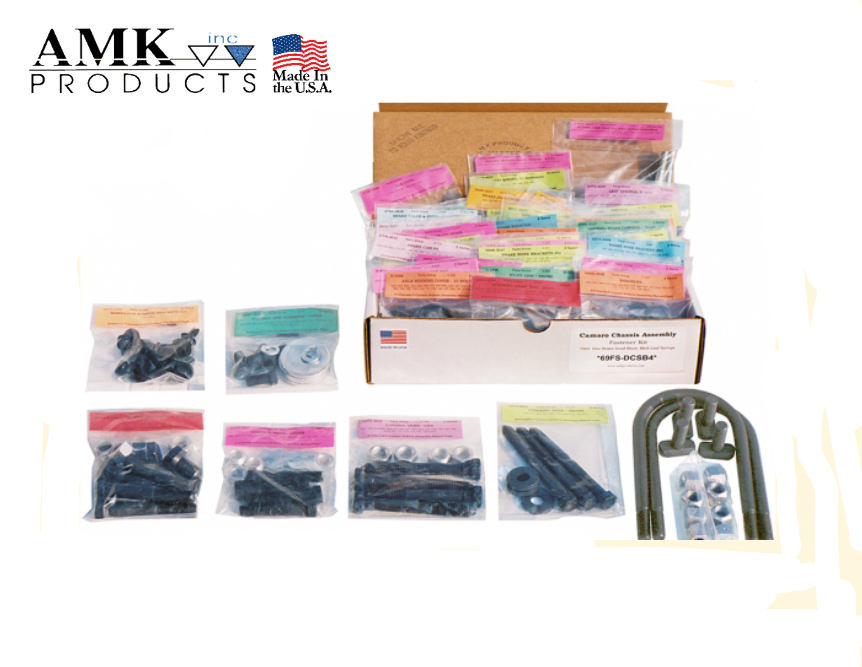

1980 1981 Chevy Camaro 267/305/350 w/Disc Brakes Chassis Master Bolt Kit 363 Pcs

1980 1981 Chevy Camaro 267/305/350 w/Disc Brakes Chassis Master Bolt Kit 363 Pcs

$387.27 USD
$0.00 USD $387.27 USD
Sale Sold out
1980 1981 Chevy Camaro 267/305/350 w/Disc Brakes & Rear Sway Rear Springs Chassis Master Bolt Kit 363 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    80FS-F41 1 Master Chassis Kit, 1980-81 Camaro w Rear Sway ** contains the sub-kits listed below ** 363
    G-7061 ACCELERATOR LEVER SUPPORT METRIC HXWA AB SCREWS 3
    G-7104 AXLE HSNG > SPRINGS w STABILIZER BAR LONG T- BOLTS, U-BOLTS, LOCK NUTS 14
    G-5007 AXLE RETAINER PLATES GR-8 HX BOLTS, NUTS, SPLIT WA'S 24
    G-7053 BRAKE BOOSTER METRIC FLNG NUTS 4
    G-7059 BRAKE BOOSTER HOSE FLAT WOUND SPRING CLAMP, BLACK 1
    G-7062 BRAKE CABLES & BRACKETS WIRE RETAINING CLIPS, SCREWS, NUTS 12
    G-6162 BRAKE CALIPER SHIELDS HX CONI SEMS 6
    G-5865 BRAKE DIST BLOCK (Fr) w PB HXWA T SCREWS 2
    G-7056 BRAKE DIST BLOCK (Rr) > AXLE HSNG FLNG HD SHLDR BOLT 1
    G-7063 BRAKE HOSE BRACKETS (Fr & Rr) METRIC HXWA SCREWS, HX BOLT, FLAT WA 5
    G-4958 BRAKE HOSE RETAINERS U-RETAINERS 3
    G-7079 CATALYTIC CONVERTER > HANGER HX BOLTS, HUG-LOK NUTS 4
    G-7071 CLUTCH BELLCRANK BRACKET > FRAME METRIC HXWA AB SCREWS 3
    G-7101 CLUTCH PEDAL PUSH ROD SEAL METRIC HXWA AB SCREWS 2
    G-5458 CONTROL ARM BUSHINGS (UPR) RETAINERS, LOCK NUTS 8
    G-5037 CONTROL ARMS (LWR) GR-8 HX BOLTS, LOCK NUTS 8
    G-7806 DIFFERENTIAL COVER - 10 BOLT 7/8" L SRTD FLNG SCREWS w PILOT 10
    G-7048 DRIVESHAFT (71-74H w M20, M40) 1.82" C-C HOLE STRAPS, FLNG BOLTS 6
    G-5337 ENGINE MOUNT THRU - V8 GR-8 FLNG BOLTS, FLNG NUTS 4
    G-5336 ENGINE MOUNTS > BLOCK - V8 GR-8 BOLTS, SPLIT WA'S 12
    G-7065 ENGINE MOUNTS > FRAME - V8 METRIC FLANGE BOLTS, FLANGE NUTS 12
    G-7077 EXHAUST HANGER > TRANS CROSS FLNG BOLTS, FLNG NUTS 4
    G-7075 EXHAUST HANGERS (Rr) METRIC HXWA AB SCREWS 8
    G-7043 FRAME BRACES FLANGE BOLTS, FLANGE NUTS 12
    G-7085 FUEL HOSES FLAT WOUND SPR CLAMPS (BLK, Green) 6
    G-4462 FUEL VAPOR CANISTER METRIC HXWA AB SCREWS, NYLON NUTS 5
    G-5052 FUEL VAPOR RETURN HOSES 6 FLAT WOUND SPRING CLAMPS (Red) 6
    G-7070 GAS TANK HX BOLTS, HXWA AB SCREWS, SPR NUTS 6
    G-4669 GREASE FITTINGS STRAIGHT STYLE 10
    G-7084 IDLER ARM > FRAME GR-8 FLNG BOLTS, LOCK NUTS 4
    G-7049 LEAF SPRING MOUNTING @ FRONT BOLTS, WA'S, SPECIAL U-NUTS 24
    G-4630 LEAF SPRINGS, Fr EYE GR-8 BOLTS, NUTS, WA'S 8
    G-7055 MASTER CYLINDER METRIC FLNG NUTS 2
    G-4829 MASTER CYLINDER PUSH ROD > PEDAL RETAINING CLIP 1
    G-5150 PARKING BRAKE CONTROL > DASH HX CONI SEMS, FLNG NUTS 4
    G-4668 PITMAN ARM > GEAR BOX HX NUT, SPLIT WA 2
    G-4838 SHACKLES 11/16" AF MARSDEN NUTS ONLY 4
    G-4586 SHOCKS (Fr) - LWR MOUNTING HXWA CA SCREWS, U-NUTS 8
    G-7051 SHOCKS (Rr) - UPR MOUNTING HI HXWA CA SCREWS 4
    G-7083 SPEDOMETER CABLE (exc M40) All 80-81FH M6-1.0 X 16 HX CONI SEMS, RETAINER 2
    G-7789 STABILIZER BAR (Fr) BRACKETS M10 METRIC FLNG BOLTS 4
    G-7047 STABILIZER BAR (Fr) END LINKS - HD BOLTS, RETAINERS, 1.22 D BUSHINGS, NUTS 22
    G-7052 STABILIZER BAR (Rr) SUPPORTS HX BOLTS, WA'S, NUTS 16
    G-7080 STEERING GEAR BOX > FRAME GR-8 HX BOLTS, OCTAGON FLAT WA'S 6
    G-7082 STEERING GEAR COUPLING SHIELD NYLON RETAINER 1
    G-7046 STEERING LINKAGE & BALL JOINTS METRIC FLNG LOCK NUTS 10
    G-7064 SUSPENSION BUMPERS & BRACKETS (Rr) HX TY-T & HXWA AB SCREW, FLNG NUTS 12
    G-7074 TAILPIPE & MUFFLER ASSY > CONVERTER METRIC HX BOLTS, TOOTH WA'S 2
    G-4169 TRANS CROSSMEMBER HX BOLTS, WA'S (RH SIDE), NUTS 14
    G-7068 TRANS INSULATOR METRIC FLANGE BOLTS, WA, LOCK NUT 4
    G-6581 WHEEL CYLINDERS (2) HX INT TOOTH SEMS 4
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 80FS-F41
