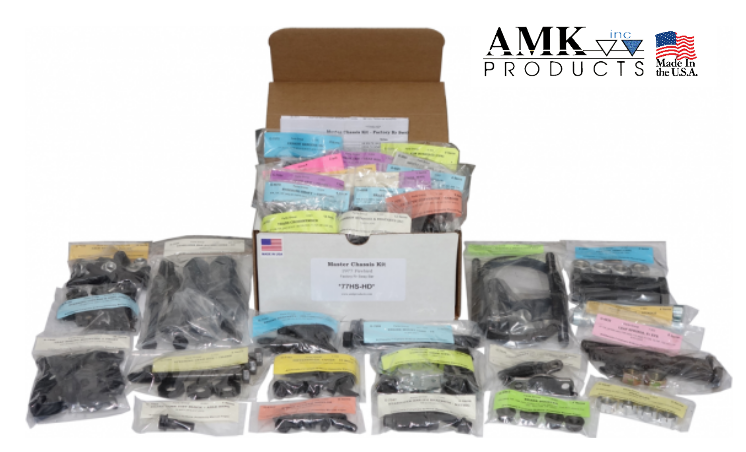

1978 1979 Pontiac Firebird V8 w/Rear Sway Chassis Master Bolt Kit 403 Pcs - AMK

1978 1979 Pontiac Firebird V8 w/Rear Sway Chassis Master Bolt Kit 403 Pcs - AMK

$439.99 USD
$0.00 USD $439.99 USD
Sale Sold out
1978 1979 Pontiac Firebird V8 w/Rear Sway Chassis Master Bolt Kit 403 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    78HS-HD 1 Master Chassis Kit, 1978-79 Firebird w Rear Sway ** contains the sub-kits listed below ** 403
    G-7061 ACCELERATOR LEVER SUPPORT METRIC HXWA AB SCREWS 3
    G-7104 AXLE HSNG > SPRINGS w STABILIZER BAR LONG T- BOLTS, U-BOLTS, LOCK NUTS 14
    G-7143 AXLE RETAINER PLATES T-BOLTS, LOCK NUTS 16
    G-5863 BRAKE BOOSTER FLNG NUTS 4
    G-7053 BRAKE BOOSTER METRIC FLNG NUTS 4
    G-7059 BRAKE BOOSTER HOSE FLAT WOUND SPRING CLAMP, BLACK 1
    G-7062 BRAKE CABLES & BRACKETS WIRE RETAINING CLIPS, SCREWS, NUTS 12
    G-6162 BRAKE CALIPER SHIELDS HX CONI SEMS 6
    G-5865 BRAKE DIST BLOCK (Fr) w PB HXWA T SCREWS 2
    G-7056 BRAKE DIST BLOCK (Rr) > AXLE HSNG FLNG HD SHLDR BOLT 1
    G-7063 BRAKE HOSE BRACKETS (Fr & Rr) METRIC HXWA SCREWS, HX BOLT, FLAT WA 5
    G-4958 BRAKE HOSE RETAINERS U-RETAINERS 3
    G-7078 CATALYTIC CONVERTER > HANGER HX BOLTS, HUG-LOK NUTS 8
    G-7071 CLUTCH BELLCRANK BRACKET > FRAME METRIC HXWA AB SCREWS 3
    G-7101 CLUTCH PEDAL PUSH ROD SEAL METRIC HXWA AB SCREWS 2
    G-5458 CONTROL ARM BUSHINGS (UPR) RETAINERS, LOCK NUTS 8
    G-5037 CONTROL ARMS (LWR) GR-8 HX BOLTS, LOCK NUTS 8
    G-5138 CONTROL ARMS (UPR) GR-8 KNURL BOLTS, LOCK NUTS, SHIMS 18
    G-7806 DIFFERENTIAL COVER - 10 BOLT 7/8" L SRTD FLNG SCREWS w PILOT 10
    G-7048 DRIVESHAFT (71-74H w M20, M40) 1.82" C-C HOLE STRAPS, FLNG BOLTS 6
    G-7090 ENGINE BRACKETS > BLOCK PLACE BOLTS, FLAT WA'S 12
    G-7099 ENGINE MOUNT THRU - V8 GR-8 FLNG BOLTS 2
    G-5338 ENGINE MOUNTS > FRAME - V8 GR-8 FLNG BOLTS, FLNG NUTS 12
    G-7077 EXHAUST HANGER > TRANS CROSS FLNG BOLTS, FLNG NUTS 4
    G-7075 EXHAUST HANGERS (Rr) METRIC HXWA AB SCREWS 8
    G-7043 FRAME BRACES FLANGE BOLTS, FLANGE NUTS 12
    G-5174 FUEL HOSES FLAT WOUND SPR CLAMPS (BLK, Green) 6
    G-4440 FUEL VAPOR CANISTER HXWA AB SCREWS, NYLON NUTS 5
    G-5052 FUEL VAPOR RETURN HOSES 6 FLAT WOUND SPRING CLAMPS (Red) 6
    G-7070 GAS TANK HX BOLTS, HXWA AB SCREWS, SPR NUTS 6
    G-4669 GREASE FITTINGS STRAIGHT STYLE 10
    G-7084 IDLER ARM > FRAME GR-8 FLNG BOLTS, LOCK NUTS 4
    G-7049 LEAF SPRING MOUNTING @ FRONT BOLTS, WA'S, SPECIAL U-NUTS 24
    G-4630 LEAF SPRINGS, Fr EYE GR-8 BOLTS, NUTS, WA'S 8
    G-5144 MASTER CYLINDER FLNG NUTS 2
    G-7055 MASTER CYLINDER METRIC FLNG NUTS 2
    G-4829 MASTER CYLINDER PUSH ROD > PEDAL RETAINING CLIP 1
    G-5150 PARKING BRAKE CONTROL > DASH HX CONI SEMS, FLNG NUTS 4
    G-4668 PITMAN ARM > GEAR BOX HX NUT, SPLIT WA 2
    G-4838 SHACKLES 11/16" AF MARSDEN NUTS ONLY 4
    G-4586 SHOCKS (Fr) - LWR MOUNTING HXWA CA SCREWS, U-NUTS 8
    G-7051 SHOCKS (Rr) - UPR MOUNTING HI HXWA CA SCREWS 4
    G-7083 SPEDOMETER CABLE (exc M40) All 80-81FH M6-1.0 X 16 HX CONI SEMS, RETAINER 2
    G-5363 SPEDOMETER CABLE > M38, M40 5/16-18 X 1/2 HX BOLT, Y-SHAPE RETAINER 2
    G-7789 STABILIZER BAR (Fr) BRACKETS M10 METRIC FLNG BOLTS 4
    G-7047 STABILIZER BAR (Fr) END LINKS - HD BOLTS, RETAINERS, 1.22 D BUSHINGS, NUTS 22
    G-7052 STABILIZER BAR (Rr) SUPPORTS HX BOLTS, WA'S, NUTS 16
    G-7080 STEERING GEAR BOX > FRAME GR-8 HX BOLTS, OCTAGON FLAT WA'S 6
    G-7082 STEERING GEAR COUPLING SHIELD NYLON RETAINER 1
    G-5139 STEERING LINKAGE & BALL JOINTS GR-8 LRG HX SLOT NUTS, COTTER PINS 20
    G-7103 SUSPENSION BUMPERS (Fr) HX LOCK NUTS 2
    G-7064 SUSPENSION BUMPERS & BRACKETS (Rr) HX TY-T & HXWA AB SCREW, FLNG NUTS 12
    G-7072 TAILPIPE & MUFFLER ASSY > CONVERTER HUG LOCK NUTS, HX BOLTS, WA'S 6
    G-7073 TAILPIPE & MUFFLER ASSY > CONVERTER HUG LOCK NUTS, HX BOLTS 4
    G-4169 TRANS CROSSMEMBER HX BOLTS, WA'S (RH SIDE), NUTS 14
    G-7068 TRANS INSULATOR METRIC FLANGE BOLTS, WA, LOCK NUT 4
    G-6581 WHEEL CYLINDERS (2) HX INT TOOTH SEMS 4
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 78HS-HD
