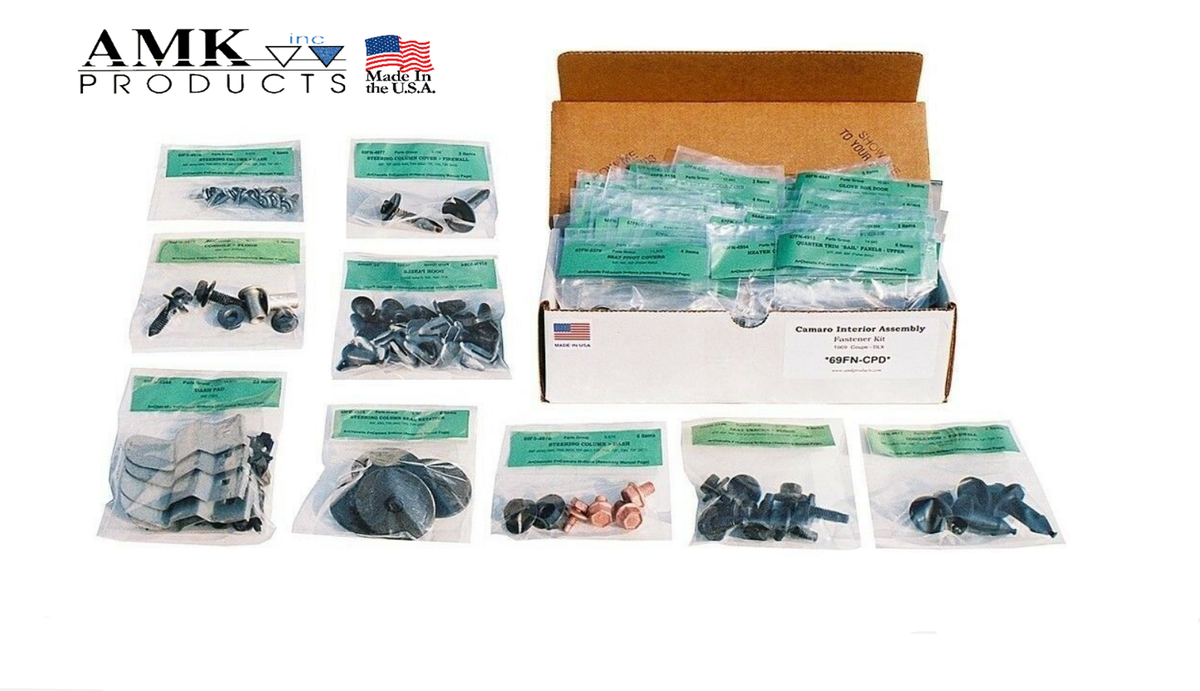

1977 Chevrolet Camaro Interior Master Bolt Kit 336 Pcs - AMK

1977 Chevrolet Camaro Interior Master Bolt Kit 336 Pcs - AMK

$229.99 USD
$0.00 USD $229.99 USD
Sale Sold out
1977 Chevrolet Camaro Interior Master Bolt Kit 336 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's interior in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    77FN 1 Master Interior Kit, 1977 Camaro ** contains the sub-kits listed below ** 336
    G-7817 AC KICK PANEL SHROUD RH METRIC POZI PN AB FLAT SEMS, SPRNG NUTS 6
    G-6972 AIR OUTLET BEZELS (w AC) - Under Dash METRIC HX AB FLAT SEMS, SPRING NUTS 18
    G-6970 AIR OUTLET BEZELS (w AC) > DASH HX AB FLAT SEMS, STMPD NUTS 8
    G-7810 AIR VENTS @ DOOR JAMB METRIC POZI RNDWA SCREWS 2
    G-6961 ASH TRAY RETAINER METRIC HX FLAT SEMS 2
    G-7833 COAT HOOKS METRIC POZI OV AB SEMS 2
    G-6975 CONSOLE > DASH HXWA AB SCREWS 2
    G-5320 CONSOLE > FLOOR BRACKETS HXWA AB & TEK SCREWS 6
    G-5281 CONSOLE BRACKET > A/T SHIFTER HX BOLTS 3
    G-5323 CONSOLE COMPARTMENT HXWA SCREWS 2
    G-7017 CONSOLE DOOR & LATCH PH TRUSS WA SCREWS 6
    G-5324 CONSOLE END HXWA SCREWS 2
    G-6974 CONSOLE SHIFT PLATE HX SOCKET SCREWS, (SPRING NUTS w M/T) 8
    G-4990 COURTESY LAMPS, UNDERDASH (69F CONV) HXWA SCREWS 2
    G-6968 DASH PAD SCREWS, FLAT SEMS, SPR NUTS, RETAINERS 20
    G-5133 DEFROSTER DUCTS HX SEMS, RIVETS, SPR NUTS, RETAINERS 8
    G-4989 DIMMER SWITCH HXWA AB SCREWS 2
    G-5650 DOME LAMP PH PN AB SCREWS 2
    G-7809 DOOR HANDLE CUPS METRIC POZI RND WA AB SCREWS 2
    G-6983 DOOR PANEL BRACKETS > DOOR HXWA AB SCREWS 4
    G-6973 FLASHER KNOB METRIC POZI OV SCREW 1
    G-6977 FUSE PANEL > FIREWALL #10 x 2 3/4 HXWA AB SCREWS w SEALER 4
    G-6585 GLOVE BOX BUMPERS RUBBER BUMPERS 2
    G-6963 GLOVE BOX DOOR & STOP METRIC SCREWS, SPRING NUTS 18
    G-6966 GLOVE BOX LINER METRIC HXWA AB SCREW 1
    G-6962 GLOVE BOX STRIKER HX FLAT SEMS, SPRING NUTS 2
    G-7937 HEADLINER FRONT/REAR TRIM METRIC POZI OV AB SCREWS 10
    G-7823 HEADLINER SIDE TRIM METRIC POZI OV AB SEMS, NYLON RETAINERS 8
    G-7827 HEADLINER TACK STRIP @ SAIL PANELS METRIC POZI RNDWA AB SCREWS 6
    G-6969 HEATER CONTROL > DASH METRIC HX AB FLAT SEMS 3
    G-6964 INSTRUMENT BEZEL > DASH PH OV AB & HX FLAT SEMS, SPR NUTS 18
    G-7006 INSULATION > FIREWALL RUBBER RETAINERS, NYLON RETAINER 5
    G-7991 KICK PANELS METRIC POZI OV FINISH WA SEMS 13 D 10
    G-7821 MIRROR, REMOTE CONTROL BEZEL METRIC POZI OV AB SCREWS 2
    G-7812 PILLAR MOULDINGS METRIC POZI PN AB SCREWS 2
    G-7828 QUARTER TRIM & SAIL PANELS (75-77) PH RNDWA SCREWS, PH OV AB SEMS 14
    G-5318 RADIO CONTROL SHAFTS SPECIAL THIN HX NUTS 2
    G-7819 SCUFF PLATES @ DOOR OPENING METRIC POZI OV AB SCREWS 8
    G-6958 SEAT BACK (Rr) > FLOOR HX 1.75 CONI SEMS SCREWS 2
    G-5381 SEAT BACK PANELS PH PN AB .50 FLAT SEMS, PH OV AB SCREWS 8
    G-7816 SEAT BACK PANELS METRIC POZI PN FLAT SEMS, POZI OV AB SCREWS 8
    G-7834 SEAT BELT RETRACTOR COVERS METRIC POZI OV AB SEMS 4
    G-7818 SEAT BELT SHOULDER STRAP GUIDES > SEAT PH OV AB SCREWS 4
    G-6955 SEAT PIVOT COVERS SPLIT DART METAL RETAINERS 2
    G-6956 SEAT TRACKS > FLOOR HX CONI 1.25 D SEMS 8
    G-5165 SHIFTER BOOT PLATE w/o CONSOLE CHROME PH OV AB SCREWS 4
    G-7031 SHIFTER CABLE SEAL RETAINER (console) HXWA AB SCREWS 2
    G-6638 STEERING COLUMN & BRACES > DASH HX SEMS, NUTS, COPPER PLATE SCREWS 10
    G-7966 STEERING COLUMN COVER (LWR) METRIC HX AB FLAT SEMS w SEALER 2
    G-5182 STEERING COLUMN COVER (UPR) HXWA SCREWS, PH OV SEMS, SPR NUTS 8
    G-6976 STEERING COLUMN SEAL RETAINER METRIC HX FLAT AB SEMS 4
    G-7814 SUN VISOR BRACKETS METRIC POZI OV SCREWS, PH OV SEMS MS's 10
    G-7993 TURN SIGNAL LEVER METRIC POZI PN AB SCREW 1
    G-6967 VENTILATION OUTLETS & DUCT HX ABT FLAT SEMS, HXWA AB SCREWS 8
    G-6949 WINDOW CRANK HANDLES WIRE RETAINERS 2
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 77FN
