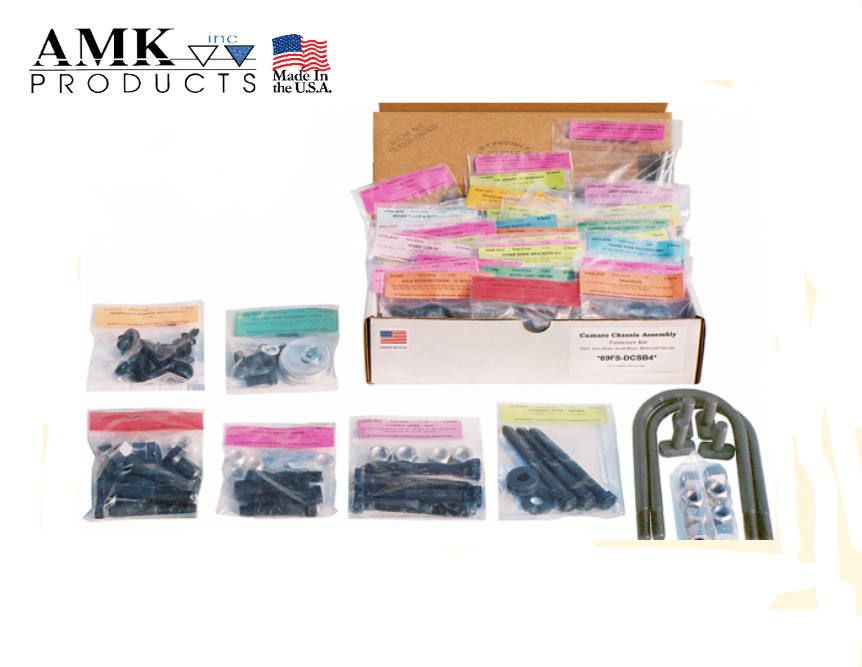

1974 Chevrolet Camaro 350 w/Disc Brakes Chassis Master Bolt Kit 358 Pcs - AMK

1974 Chevrolet Camaro 350 w/Disc Brakes Chassis Master Bolt Kit 358 Pcs - AMK

$360.49 USD
$0.00 USD $360.49 USD
Sale Sold out
1974 Chevrolet Camaro 350 w/Disc Brakes & Rear Sway Rear Springs Chassis Master Bolt Kit 358 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    74FS-F41 1 Master Chassis Kit, 1974 Camaro w Rear Sway ** contains the sub-kits listed below ** 358
    G-7060 ACCELERATOR LEVER SUPPORT HXWA AB SCREWS 3
    G-7104 AXLE HSNG > SPRINGS w STABILIZER BAR LONG T- BOLTS, U-BOLTS, LOCK NUTS 14
    G-5007 AXLE RETAINER PLATES GR-8 HX BOLTS, NUTS, SPLIT WA'S 24
    G-5863 BRAKE BOOSTER FLNG NUTS 4
    G-4740 BRAKE BOOSTER HOSE FLAT WOUND SPRING CLAMPS (Black) 2
    G-7054 BRAKE CABLES & BRACKETS WIRE RETAINING CLIPS, SCREWS, NUTS 12
    G-6162 BRAKE CALIPER SHIELDS HX CONI SEMS 6
    G-5865 BRAKE DIST BLOCK (Fr) w PB HXWA T SCREWS 2
    G-5149 BRAKE DIST BLOCK (Rr) > AXLE HSNG FLNG HD SHLDR BOLT 1
    G-7057 BRAKE HOSE BRACKETS (Fr & Rr) LRG HXWA AB SCREWS 3
    G-4958 BRAKE HOSE RETAINERS U-RETAINERS 3
    G-5890 CLUTCH BELLCRANK BRACKET > FRAME LRG HXWA AB SCREWS 3
    G-5458 CONTROL ARM BUSHINGS (UPR) RETAINERS, LOCK NUTS 8
    G-5037 CONTROL ARMS (LWR) GR-8 HX BOLTS, LOCK NUTS 8
    G-7107 DIFFERENTIAL COVER - 10 BOLT 15/16" L SRTD FLNG SCREWS "RBW" 10
    G-5337 ENGINE MOUNT THRU - V8 GR-8 FLNG BOLTS, FLNG NUTS 4
    G-5336 ENGINE MOUNTS > BLOCK - V8 GR-8 BOLTS, SPLIT WA'S 12
    G-5338 ENGINE MOUNTS > FRAME - V8 GR-8 FLNG BOLTS, FLNG NUTS 12
    G-5247 EXHAUST HANGERS - DUAL (or SINGLE) HXWA SCREWS, HX SPLIT SEMS 8
    G-5174 FUEL HOSES FLAT WOUND SPR CLAMPS (BLK, Green) 6
    G-4405 FUEL VAPOR CANISTER HXWA AB & B SCREWS, NYLON NUTS 7
    G-5052 FUEL VAPOR RETURN HOSES 6 FLAT WOUND SPRING CLAMPS (Red) 6
    G-7069 GAS TANK HX BOLTS, HXWA AB SCREWS, SPR NUTS 6
    G-4669 GREASE FITTINGS STRAIGHT STYLE 10
    G-4465 IDLER ARM > FRAME GR-8 HX BOLTS, WA'S, NUTS 6
    G-7049 LEAF SPRING MOUNTING @ FRONT BOLTS, WA'S, SPECIAL U-NUTS 24
    G-4630 LEAF SPRINGS, Fr EYE GR-8 BOLTS, NUTS, WA'S 8
    G-5144 MASTER CYLINDER FLNG NUTS 2
    G-4829 MASTER CYLINDER PUSH ROD > PEDAL RETAINING CLIP 1
    G-5150 PARKING BRAKE CONTROL > DASH HX CONI SEMS, FLNG NUTS 4
    G-4668 PITMAN ARM > GEAR BOX HX NUT, SPLIT WA 2
    G-4838 SHACKLES 11/16" AF MARSDEN NUTS ONLY 4
    G-4586 SHOCKS (Fr) - LWR MOUNTING HXWA CA SCREWS, U-NUTS 8
    G-6100 SHOCKS (Rr) - UPR MOUNTING HX SPLIT SEMS 4
    G-4694 SPEDOMETER CABLE > M/T, PG & some M38 1/4-20 X 5/8 HX SPLIT SEMS, RETAINER 2
    G-5141 STABILIZER BAR (Fr) BRACKETS HX TY-T SCREWS 4
    G-5140 STABILIZER BAR (Fr) END LINKS BLTS, RTNRS, BSHNGS, SPACERS, NUTS 22
    G-7052 STABILIZER BAR (Rr) SUPPORTS HX BOLTS, WA'S, NUTS 16
    G-5180 STEERING GEAR BOX > FRAME GR-8 HX BOLTS, FLAT WA'S 6
    G-7081 STEERING GEAR COUPLING SHIELD HX AB SCREW, FLAT WA 1
    G-5139 STEERING LINKAGE & BALL JOINTS GR-8 LRG HX SLOT NUTS, COTTER PINS 20
    G-4670 STEERING SHAFT > COUPLING REG & HVY NUTS, SPLIT WA'S 4
    G-7103 SUSPENSION BUMPERS (Fr) HX LOCK NUTS 2
    G-7050 SUSPENSION BUMPERS & BRACKETS (Rr) HX TY-T & HXWA AB SCREW, FLNG NUTS 12
    G-4169 TRANS CROSSMEMBER HX BOLTS, WA'S (RH SIDE), NUTS 14
    G-4603 TRANS INSULATOR HX BOLTS, FLAT & SPLIT WA'S 10
    G-6581 WHEEL CYLINDERS (2) HX INT TOOTH SEMS 4
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 74FS-F41
