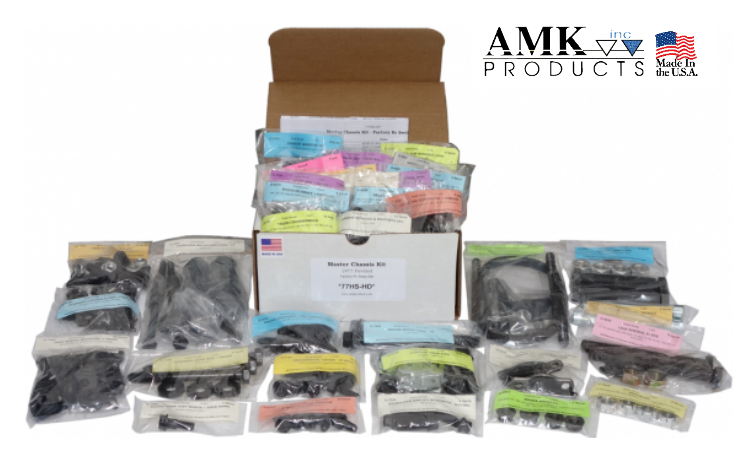

1973 Pontiac Firebird V8 w/Rear Sway Chassis Master Bolt Kit 378 Pcs - AMK

1973 Pontiac Firebird V8 w/Rear Sway Chassis Master Bolt Kit 378 Pcs - AMK

$410.99 USD
$0.00 USD $410.99 USD
Sale Sold out
1973 Pontiac Firebird V8 w/Rear Sway Chassis Master Bolt Kit 378 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    73HS-HD 1 Master Chassis Kit, 1973 Firebird w Rear Sway ** contains the sub-kits listed below ** 378
    G-5161 ACCELERATOR LEVER SUPPORT HX AB FLAT SEMS 3
    G-7104 AXLE HSNG > SPRINGS w STABILIZER BAR LONG T- BOLTS, U-BOLTS, LOCK NUTS 14
    G-7143 AXLE RETAINER PLATES T-BOLTS, LOCK NUTS 16
    G-5863 BRAKE BOOSTER FLNG NUTS 4
    G-7059 BRAKE BOOSTER HOSE FLAT WOUND SPRING CLAMP, BLACK 1
    G-4349 BRAKE CABLES & BRACKETS WIRE RETAINING CLIPS, SCREWS, NUTS 13
    G-6162 BRAKE CALIPER SHIELDS HX CONI SEMS 6
    G-5865 BRAKE DIST BLOCK (Fr) w PB HXWA T SCREWS 2
    G-5149 BRAKE DIST BLOCK (Rr) > AXLE HSNG FLNG HD SHLDR BOLT 1
    G-7058 BRAKE HOSE BRACKETS (Fr & Rr) HXWA T SCREWS 4
    G-4958 BRAKE HOSE RETAINERS U-RETAINERS 3
    G-5890 CLUTCH BELLCRANK BRACKET > FRAME LRG HXWA AB SCREWS 3
    G-4658 CLUTCH PEDAL PUSH ROD SEAL HXWA AB SCREWS 2
    G-5458 CONTROL ARM BUSHINGS (UPR) RETAINERS, LOCK NUTS 8
    G-5037 CONTROL ARMS (LWR) GR-8 HX BOLTS, LOCK NUTS 8
    G-5138 CONTROL ARMS (UPR) GR-8 KNURL BOLTS, LOCK NUTS, SHIMS 18
    G-7107 DIFFERENTIAL COVER - 10 BOLT 15/16" L SRTD FLNG SCREWS "RBW" 10
    G-7048 DRIVESHAFT (71-74H w M20, M40) 1.82" C-C HOLE STRAPS, FLNG BOLTS 6
    G-4796 DRIVESHAFT, TH400 69 > 302, 350, BB. All 71 > 1.56" C-C HOLE STRAPS, FLNG BOLTS 6
    G-7090 ENGINE BRACKETS > BLOCK PLACE BOLTS, FLAT WA'S 12
    G-7088 ENGINE MOUNT THRU - 455 GTO & 70-74H 6 3/4" GR-5 HX BOLTS w SPECIAL POINT 2
    G-5338 ENGINE MOUNTS > FRAME - V8 GR-8 FLNG BOLTS, FLNG NUTS 12
    G-7096 EXHAUST HANGERS - DUAL LRG HXWA AB SCREWS, HX SPLIT SEMS 6
    G-7095 FUEL HOSES FLAT WOUND SPRING CLAMPS (Green) 8
    G-7093 FUEL VAPOR CANISTER HXWA AB & B SCREWS 3
    G-5052 FUEL VAPOR RETURN HOSES 6 FLAT WOUND SPRING CLAMPS (Red) 6
    G-5176 GAS TANK BOLTS, WA'S, NUTS, SCREWS, SPACERS 12
    G-4669 GREASE FITTINGS STRAIGHT STYLE 10
    G-4465 IDLER ARM > FRAME GR-8 HX BOLTS, WA'S, NUTS 6
    G-4607 LEAF SPRING MOUNTING @ FRONT HX PP CONI SEMS, SPECIAL U-NUTS 12
    G-4630 LEAF SPRINGS, Fr EYE GR-8 BOLTS, NUTS, WA'S 8
    G-5144 MASTER CYLINDER FLNG NUTS 2
    G-4829 MASTER CYLINDER PUSH ROD > PEDAL RETAINING CLIP 1
    G-5150 PARKING BRAKE CONTROL > DASH HX CONI SEMS, FLNG NUTS 4
    G-4668 PITMAN ARM > GEAR BOX HX NUT, SPLIT WA 2
    G-4838 SHACKLES 11/16" AF MARSDEN NUTS ONLY 4
    G-4586 SHOCKS (Fr) - LWR MOUNTING HXWA CA SCREWS, U-NUTS 8
    G-6100 SHOCKS (Rr) - UPR MOUNTING HX SPLIT SEMS 4
    G-4694 SPEDOMETER CABLE > M/T, PG & some M38 1/4-20 X 5/8 HX SPLIT SEMS, RETAINER 2
    G-5363 SPEDOMETER CABLE > M38, M40 5/16-18 X 1/2 HX BOLT, Y-SHAPE RETAINER 2
    G-7087 STABILIZER BAR (Fr) BRACKETS - HD HX SKT SCREWS, RIVET NUTS 8
    G-7086 STABILIZER BAR (Fr) END LINKS - HD BLTS, RTNRS, BSHNGS, SPACERS, NUTS 22
    G-5256 STABILIZER BAR (Rr) SUPPORTS HX BOLTS, WA'S, NUTS 18
    G-4354 STEERING GEAR "RAG" JOINT 12 PT BOLT ONLY 1
    G-5180 STEERING GEAR BOX > FRAME GR-8 HX BOLTS, FLAT WA'S 6
    G-7081 STEERING GEAR COUPLING SHIELD HX AB SCREW, FLAT WA 1
    G-5139 STEERING LINKAGE & BALL JOINTS GR-8 LRG HX SLOT NUTS, COTTER PINS 20
    G-4670 STEERING SHAFT > COUPLING REG & HVY NUTS, SPLIT WA'S 4
    G-7103 SUSPENSION BUMPERS (Fr) HX LOCK NUTS 2
    G-4337 SUSPENSION BUMPERS & BRACKETS (Rr) HX PP CONI SEMS, HXWA SCREWS, NUTS 10
    G-4169 TRANS CROSSMEMBER HX BOLTS, WA'S (RH SIDE), NUTS 14
    G-4603 TRANS INSULATOR HX BOLTS, FLAT & SPLIT WA'S 10
    G-6581 WHEEL CYLINDERS (2) HX INT TOOTH SEMS 4
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 73HS-HD
