1971 Cougar Mustang 429 w/Disc Brakes Chassis Master Bolt Kit 316 Pcs - AMK

1971 Cougar Mustang 429 w/Disc Brakes Chassis Master Bolt Kit 316 Pcs - AMK

$428.47 USD
$0.00 USD $428.47 USD
Sale Sold out

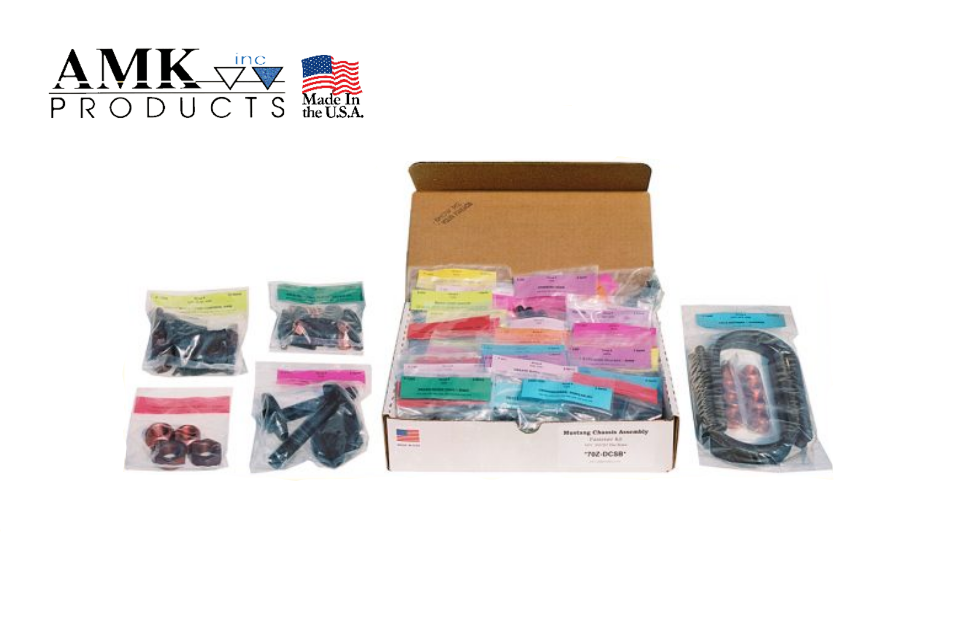

1971 Mercury Cougar Ford Mustang 429 w/Disc Front Brakes Chassis Master Bolt Kit 316 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    71Z-DCBB 1 Master Chassis Kit, 1971 Mustang Disc Brake 429CJ ** contains the sub-kits listed below ** 316
    F-1456 ACCEL BELLCRANK > FIREWALL HXWA AB SCREWS, SRTD FLNG NUTS 6
    F-1444 AXLE HOUSING > SPRINGS 5 3/4" U-BOLTS, FLNG NUTS 12
    F-1440 AXLE RETAINER PLATES - 250 & 8 CYL T-BOLTS, RED LOCK NUTS 16
    F-1481 BRAKE BOOSTER > FIREWALL FLNG NUTS 4
    F-575 BRAKE CABLES > BODY RETAINING CLIPS, HX NUTS 6
    F-1263 BRAKE CALIPERS > SPINDLE DRILLED GR-8 BOLTS, SPLIT WA'S 8
    F-579 BRAKE DRUM RETAINERS GREEN PUSH ON RETAINERS 6
    F-1250 BRAKE HOSES (disc) > BODY HXWA C SCREWS, U-CLIP 5
    F-670 BRAKE LIGHT SWITCH RETAINING PIN 1
    F-854 BRAKE PEDAL > FIREWALL FLNG NUTS 4
    F-1601 BRAKE ROTOR SHIELDS HX EXT SEMS 6
    F-596 COIL SPRING SEATS (perches) LOCK NUTS 4
    F-1515 CONTROL ARMS (LWR) GR-8 CAM BOLTS, RED NUTS, WA'S 8
    F-3311 CONTROL ARMS (UPR) GR-8 1/2-13 KNURLED BOLTS, RED NUTS 12
    F-785 DIFFERENTIAL CARRIER > HOUSING RED LOCK NUTS, COPPER WA'S 20
    F-1273 DRIVESHAFT - V8, 6 CYL 67-68 A/T, All 69 > 5/16" U-BOLTS, LOCK NUTS 6
    F-467 ENG INSULATOR > BODY BRKT'S (exc 70F 6 cyl) 4 3/8" UBS FLNG BOLTS & NUTS 4
    F-1450 ENGINE INSULATOR & BLOCK BRKT'S - 429 SPL FLNG BOLTS, LOCK NUTS 10
    F-853 ENGINE MOUNTS > BODY - V8 UBS FLNG BOLTS & NUTS 16
    F-1455 EXHAUST HANGERS - DUAL HXWA C SCREWS 12
    F-754 FUEL VAPOR STORAGE CANISTER EXT KEPS NUTS 3
    F-1411 GAS TANK CRG BOLTS, FLNG NUTS 4
    F-992 GAS TANK FILLER NECK SEAL PH PN B SCREWS 4
    F-301 GAS TANK FILLER NECK w TWIST CAP HXWA AB SCREW 5
    F-571 GREASE PLUGS, CHASSIS HX PLUGS 9
    F-1267 IDLER ARM HX BOLTS, LOCK NUTS, CLIPPED WA'S 6
    F-251 LEAF SPRING MOUNTING @ FRONT FLNG BOLTS & NUTS 4
    F-1475 MASTER CYLINDER w POWER BRAKES FLNG NUTS 2
    F-1333 PARKING BRAKE CONTROL > BODY HXWA SRTD SCREWS 3
    F-614 PITMAN ARM > GEAR BOX HX JAM NUT, SPLIT WA 2
    F-799 PROPORTIONING VALVE > APRON UBS FLNG NUTS 2
    F-1251 SHOCK BRACKETS (Fr) LOW HD CRG BOLTS, LOCK NUTS 12
    F-810 STABILIZER BAR (Fr) BRACKETS HX CONI SEMS, LOCK NUTS 8
    F-3950 STABILIZER BAR (Fr) END LINKS BLTS, RTNRS, BSHNGS, SPACERS, NUTS 22
    F-868 STABILIZER BAR (Rr) > BODY HXWA SCREWS 4
    F-612 STEERING COUPLING 11/4/68 > 12 PT BOLT, 5/16-18 LOCK NUTS 3
    F-1442 STEERING GEAR BOX HX BOLTS, FLAT WA'S 6
    F-815 STEERING LINKAGE SLOTTED NUTS, COTTER PINS 21
    F-661 STRUT ROD THREADED ENDS > BODY LOCK NUTS 4
    F-1264 STRUT RODS > LWR CONTROL ARM 1/2-13 SPL KNRLD BOLTS, NUTS, PINS 12
    F-2957 SUSP BUMPER (Rr) LOCK NUT 1
    F-1143 TRANS CROSSMEMBER UBS FLNG BOLTS & NUTS 4
    F-356 WHEEL CYLINDERS (2) - 250 & All 8 CYL 5/16-18 HX EXT SEMS 4
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 71Z-DCBB
