1970 1971 Ford Torino 429 w/Disc Brakes Chassis Master Bolt Kit 330 Pcs - AMK

1970 1971 Ford Torino 429 w/Disc Brakes Chassis Master Bolt Kit 330 Pcs - AMK

$428.47 USD
$0.00 USD $428.47 USD
Sale Sold out

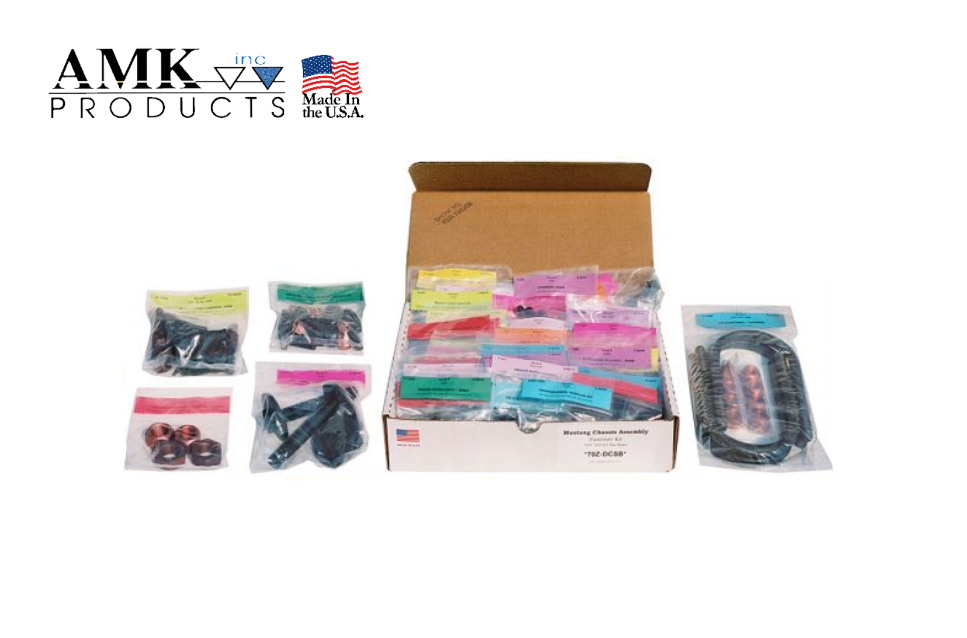

1970 1971 Ford Torino 429 w/Disc Front Brakes Chassis Master Bolt Kit 330 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    70O-DCBB 1 Master Chassis Kit, 1970-71 Torino Disc Brake 429 ** contains the sub-kits listed below ** 330
    F-1461 ACCEL BELLCRANK > FIREWALL HXWA AB SCREWS 2
    F-2886 AXLE HOUSING > SPRINGS - HD CHP, ELIM 7.0" U-BOLTS, FLNG NUTS 12
    F-1440 AXLE RETAINER PLATES - 250 & 8 CYL T-BOLTS, RED LOCK NUTS 16
    F-1480 BRAKE BOOSTER > FIREWALL HX SPLIT SEMS, FLNG NUTS 5
    F-575 BRAKE CABLES > BODY RETAINING CLIPS, HX NUTS 6
    F-1263 BRAKE CALIPERS > SPINDLE DRILLED GR-8 BOLTS, SPLIT WA'S 8
    F-579 BRAKE DRUM RETAINERS GREEN PUSH ON RETAINERS 6
    F-1250 BRAKE HOSES (disc) > BODY HXWA C SCREWS, U-CLIP 5
    F-670 BRAKE LIGHT SWITCH RETAINING PIN 1
    F-1601 BRAKE ROTOR SHIELDS HX EXT SEMS 6
    F-596 COIL SPRING SEATS (perches) LOCK NUTS 4
    F-1515 CONTROL ARMS (LWR) GR-8 CAM BOLTS, RED NUTS, WA'S 8
    F-3311 CONTROL ARMS (UPR) GR-8 1/2-13 KNURLED BOLTS, RED NUTS 12
    F-785 DIFFERENTIAL CARRIER > HOUSING RED LOCK NUTS, COPPER WA'S 20
    F-1273 DRIVESHAFT - V8, 6 CYL 67-68 A/T, All 69 > 5/16" U-BOLTS, LOCK NUTS 6
    F-753 ENG INSULATOR > BODY BRKT'S - V8 4 3/4" BOLTS, FLNG NUTS, FLAT WA'S 6
    F-467 ENG INSULATOR > BODY BRKT'S (exc 70F 6 cyl) 4 3/8" UBS FLNG BOLTS & NUTS 4
    F-1450 ENGINE INSULATOR & BLOCK BRKT'S - 429 SPL FLNG BOLTS, LOCK NUTS 10
    F-853 ENGINE MOUNTS > BODY - V8 UBS FLNG BOLTS & NUTS 16
    F-1646 GAS TANK HXWA AB SCREWS 14
    F-1427 GAS TANK FILLER NECK SEAL (70-71 combo) RND WA AB, HXWA B SCREWS 8
    F-571 GREASE PLUGS, CHASSIS HX PLUGS 9
    F-1265 IDLER ARM HX BOLTS, LOCK NUTS, CLIPPED WA'S 6
    F-251 LEAF SPRING MOUNTING @ FRONT FLNG BOLTS & NUTS 4
    F-1475 MASTER CYLINDER w POWER BRAKES FLNG NUTS 2
    F-1362 P/S CYLINDER BRACKET > BODY HX BOLTS, LOCK NUTS, WA'S 7
    F-864 P/S HOSE SUPPORT INSULATOR RETAINER HXWA F SCREW 1
    F-1311 P/S OIL COOLER - BOSS 302/429 & 428CJ HXWA TT SCREW 1
    F-1849 PARKING BRAKE CONTROL > BODY HX PERI SEMS 3
    F-614 PITMAN ARM > GEAR BOX HX JAM NUT, SPLIT WA 2
    F-799 PROPORTIONING VALVE > APRON UBS FLNG NUTS 2
    F-666 SHACKLE ASSY (Rr) - NUTS ONLY UBS FLNG NUTS 4
    F-3908 SHOCK BRACKETS (Fr) LOW HD CRG BOLTS, EXT KEPS NUTS 12
    F-810 STABILIZER BAR (Fr) BRACKETS HX CONI SEMS, LOCK NUTS 8
    F-3950 STABILIZER BAR (Fr) END LINKS BLTS, RTNRS, BSHNGS, SPACERS, NUTS 22
    F-612 STEERING COUPLING 11/4/68 > 12 PT BOLT, 5/16-18 LOCK NUTS 3
    F-350 STEERING GEAR BOX HX BOLTS, CLIP FLAT & SPLIT WA'S 9
    F-335 STEERING LINKAGE w PS - 69 HD, All 70 SLOTTED NUTS, COTTER PINS, FLAT WA 23
    F-661 STRUT ROD THREADED ENDS > BODY LOCK NUTS 4
    F-1264 STRUT RODS > LWR CONTROL ARM 1/2-13 SPL KNRLD BOLTS, NUTS, PINS 12
    F-2957 SUSP BUMPER (Rr) LOCK NUT 1
    F-2960 SUSPENSION BUMPERS (Fr) 5/16-18 LOCK NUTS 2
    F-3904 TRANS CROSSMEMBER POINTED BOLTS, SLOT NUTS, WA'S, PINS 8
    F-1496 TRANS INSULATOR - A/T & All 428CJ POINTED HX BOLTS, FLNG NUTS, WA'S 6
    F-356 WHEEL CYLINDERS (2) - 250 & All 8 CYL 5/16-18 HX EXT SEMS 4
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 70O-DCBB
