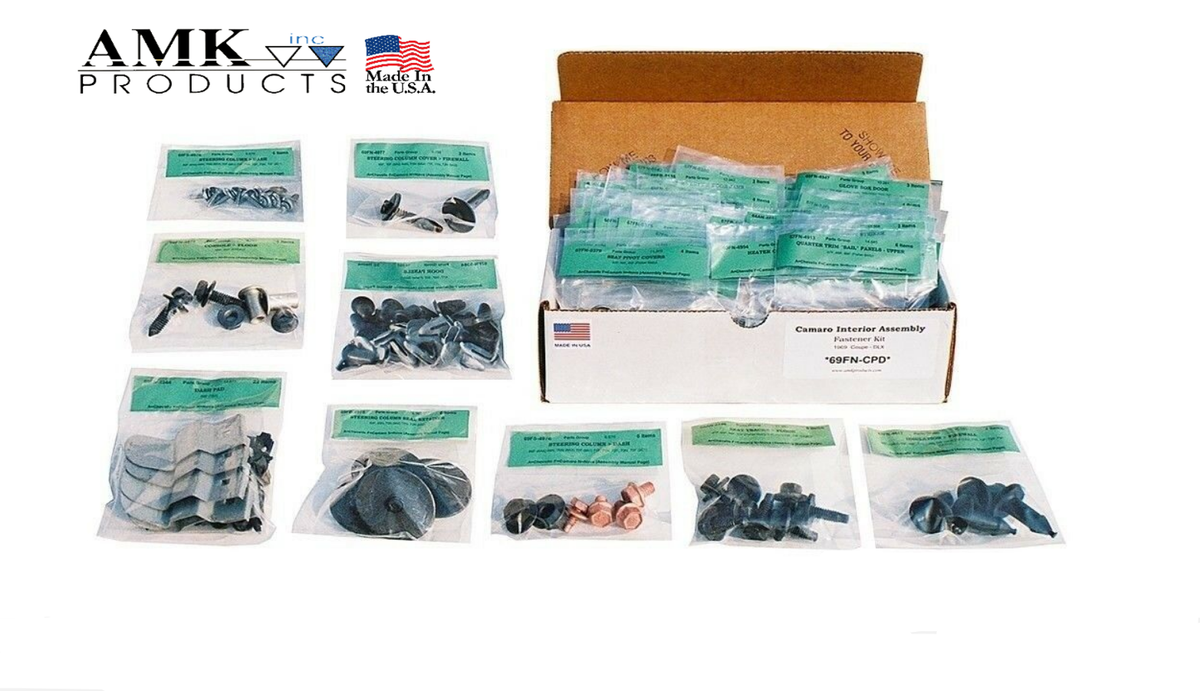

1970 1971 Chevrolet Camaro Interior Master Bolt Kit 424 Pcs - AMK

1970 1971 Chevrolet Camaro Interior Master Bolt Kit 424 Pcs - AMK

$269.99 USD
$0.00 USD $269.99 USD
Sale Sold out
1970 1971 Chevrolet Camaro Interior Master Bolt Kit 424 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's interior in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    70FN 1 Master Interior Kit, 1970-71 Camaro ** contains the sub-kits listed below ** 424
    G-5001 AC KICK PANEL SHROUD RH PH OV FIN WA SEMS .50 D, SPRG NUTS 6
    G-5219 AIR OUTLET BEZELS (w AC) - Under Dash HX AB FLAT SEMS, SPRING NUTS 18
    G-5217 AIR OUTLET BEZELS (w AC) > DASH HI-HX BT FLAT SEMS 8
    G-5135 AIR VENTS @ DOOR JAMB .28 D PH TRUSSWA AB SCREWS 2
    G-7831 ARMREST PADS RND WA B SCREWS 4
    G-5114 ASH TRAY FACE PLATE HI-HX BT FLAT SEMS 2
    G-5113 ASH TRAY RETAINER HXWA AB SCREWS 3
    G-6953 COAT HOOKS PH OV SEMS SCREWS 2
    G-6276 CONSOLE - ASH TRAY DOOR PINS, RETAINERS 4
    G-5244 CONSOLE - Fr COVER SCREWS, SPRING NUTS 8
    G-5239 CONSOLE > FLOOR BRACKETS PH PN AB FLAT SEMS, SPRING NUTS 12
    G-6588 CONSOLE ASH TRAY DOOR BUMPERS RUBBER BUMPERS 4
    G-5248 CONSOLE DOOR LOCK PH PN MS 1
    G-6415 CONSOLE DOOR, HINGE & LATCH PH PN BT FLAT SEMS & SCREWS 8
    G-5242 CONSOLE END PANELS, UPPER & LWR PH OV AB SEMS, PH PN SCREWS, SPRING NUTS 12
    G-5250 CONSOLE FLOOR BRACKETS HX SPLIT SEMS, RIVET NUTS 12
    G-5249 CONSOLE LAMP LENS HX AB FLAT SEMS 2
    G-5240 CONSOLE TOP FRAME HX FLAT & PN PN AB SEMS 12
    G-4990 COURTESY LAMPS, UNDERDASH (69F CONV) HXWA SCREWS 2
    G-5125 DASH PAD SCREWS, FLAT SEMS, SPR NUTS, RETAINERS 23
    G-5133 DEFROSTER DUCTS HX SEMS, RIVETS, SPR NUTS, RETAINERS 8
    G-4989 DIMMER SWITCH HXWA AB SCREWS 2
    G-5650 DOME LAMP PH PN AB SCREWS 2
    G-7830 DOOR PANEL BRACKETS > DOOR HX AB FLAT SEMS 4
    G-6945 DOOR PANELS RETAINERS, PLUGS (flexible!), SCREWS 40
    G-6947 DOOR PANELS - TOP MOULDING PH WAFER SCREWS 8
    G-4986 FUSE PANEL > FIREWALL #10 x 2 1/4 HXWA AB SCREWS w SEALER 2
    G-6585 GLOVE BOX BUMPERS RUBBER BUMPERS 2
    G-5117 GLOVE BOX DOOR & STOP VARIOUS SCREWS, SPRING NUTS 18
    G-5119 GLOVE BOX LINER HXWA AB SCREW 1
    G-5116 GLOVE BOX STRIKER HXWA SCREWS, SPRING NUTS 4
    G-7824 HEADLINER FRONT/REAR TRIM (70-73 only) WAFER HD AB SCREWS 17
    G-7822 HEADLINER SIDE TRIM (70-73 only) METAL RETAINERS 6
    G-7826 HEADLINER TACK STRIP @ SAIL PANELS PH RNDWA AB SCREWS 8
    G-5417 HEADREST ESCUTCHEONS CHROME PH OV AB SCREWS 8
    G-6346 HEATER CONTROL > DASH HX FLAT BT SEMS 3
    G-5198 INSTRUMENT BEZEL > DASH PH OV AB & HX BT FLAT SEMS, SPR NUTS 18
    G-4617 INSULATION > FIREWALL RUBBER RETAINERS 4
    G-5390 KICK PANELS CHROME PH OV FINISH WA SEMS .50 D 10
    G-7820 MIRROR, REMOTE CONTROL BEZEL PH OV AB SCREWS 2
    G-7832 PILLAR MOULDINGS (70-76 combo) PH OV & PH RNDWA AB SCREWS 4
    G-6948 QUARTER TRIM & SAIL PANELS (70-74) PH RNDWA SCREWS, PH OV AB SCREWS 8
    G-5318 RADIO CONTROL SHAFTS SPECIAL THIN HX NUTS 2
    G-4321 SCUFF PLATES @ DOOR OPENING SS/CHROME PH OV AB SCREWS 8
    G-6958 SEAT BACK (Rr) > FLOOR HX 1.75 CONI SEMS SCREWS 2
    G-5381 SEAT BACK PANELS PH PN AB .50 FLAT SEMS, PH OV AB SCREWS 8
    G-7807 SEAT BACK PANELS PH PN AB .50 FLAT SEMS, PH OV AB SCREWS 8
    G-5241 SEAT BELT BUCKLE RETAINERS PH OV AB FLUSH SEMS, SPRING NUTS 8
    G-6957 SEAT BELT RETRACTOR COVERS PH OV AB SEMS 4
    G-6955 SEAT PIVOT COVERS SPLIT DART METAL RETAINERS 2
    G-6956 SEAT TRACKS > FLOOR HX CONI 1.25 D SEMS 8
    G-5165 SHIFTER BOOT PLATE w/o CONSOLE CHROME PH OV AB SCREWS 4
    G-6638 STEERING COLUMN & BRACES > DASH HX SEMS, NUTS, COPPER PLATE SCREWS 10
    G-4977 STEERING COLUMN COVER (LWR) HX AB FLAT SEMS w SEALER 2
    G-5182 STEERING COLUMN COVER (UPR) HXWA SCREWS, PH OV SEMS, SPR NUTS 8
    G-5181 STEERING COLUMN SEAL RETAINER HX AB FLAT SEMS 4
    G-5184 STEERING WHEEL COVER PH PN AB SCREWS, SPRING NUTS 4
    G-5204 STEERING WHEEL SHROUD EMBLEM 1/8" STAMPED HX NUTS 2
    G-4992 TURN SIGNAL LEVER PH PN AB SCREW 1
    G-6348 VENTILATION OUTLETS & DUCT HI-HX BT FLAT SEMS, HXWA AB SCREWS 8
    G-6949 WINDOW CRANK HANDLES WIRE RETAINERS 2
    G-5120 WIPER SWITCH & GROUND HXWA AB & B SCREWS, TOOTH WA 5
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-3 weeks.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 70FN
