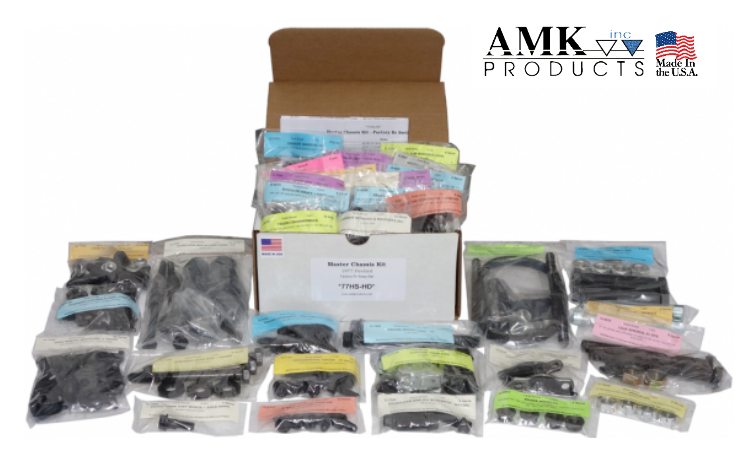

1970 1971 1972 Pontiac Firebird V8 w/Disc Brakes Chassis Master Bolt Kit 374 Pcs

1970 1971 1972 Pontiac Firebird V8 w/Disc Brakes Chassis Master Bolt Kit 374 Pcs

$419.99 USD
$0.00 USD $419.99 USD
Sale Sold out
1970 1971 1972 Pontiac Firebird V8 w/Disc Brakes Chassis Master Bolt Kit 374 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    70HS-S 1 Master Chassis Kit, 1970-72 Firebird STD ** contains the sub-kits listed below ** 374
    G-5161 ACCELERATOR LEVER SUPPORT HX AB FLAT SEMS 3
    G-4897 AXLE HSNG > SPRINGS w/o STAB BAR MULTI SPRINGS. T, U BOLTS, LOCK NUTS 14
    G-7143 AXLE RETAINER PLATES T-BOLTS, LOCK NUTS 16
    G-5863 BRAKE BOOSTER FLNG NUTS 4
    G-4349 BRAKE CABLES & BRACKETS WIRE RETAINING CLIPS, SCREWS, NUTS 13
    G-6162 BRAKE CALIPER SHIELDS HX CONI SEMS 6
    G-5865 BRAKE DIST BLOCK (Fr) w PB HXWA T SCREWS 2
    G-5149 BRAKE DIST BLOCK (Rr) > AXLE HSNG FLNG HD SHLDR BOLT 1
    G-5252 BRAKE DIST BLOCK (Rr) > AXLE HSNG HX SPLIT SEMS 1
    G-7058 BRAKE HOSE BRACKETS (Fr & Rr) HXWA T SCREWS 4
    G-4958 BRAKE HOSE RETAINERS U-RETAINERS 3
    G-5172 CLUTCH BELLCRANK BRACKET > FRAME HXWA SCREWS 3
    G-4658 CLUTCH PEDAL PUSH ROD SEAL HXWA AB SCREWS 2
    G-5458 CONTROL ARM BUSHINGS (UPR) RETAINERS, LOCK NUTS 8
    G-4608 CONTROL ARMS (LWR) POINTED BOLTS, LOCK NUTS 8
    G-5138 CONTROL ARMS (UPR) GR-8 KNURL BOLTS, LOCK NUTS, SHIMS 18
    G-5466 DIFFERENTIAL COVER - 10 BOLT 7/8" L HXWA MACHINE SCREWS 10
    G-7048 DRIVESHAFT (71-74H w M20, M40) 1.82" C-C HOLE STRAPS, FLNG BOLTS 6
    G-4796 DRIVESHAFT, TH400 69 > 302, 350, BB. All 71 > 1.56" C-C HOLE STRAPS, FLNG BOLTS 6
    G-7090 ENGINE BRACKETS > BLOCK PLACE BOLTS, FLAT WA'S 12
    G-7088 ENGINE MOUNT THRU - 455 GTO & 70-74H 6 3/4" GR-5 HX BOLTS w SPECIAL POINT 2
    G-7089 ENGINE MOUNTS > FRAME - V8 GR-8 HX BOLTS, LOCK NUTS 12
    G-5246 EXHAUST HANGERS - DUAL HXWA SCREWS, HX SPLIT SEMS 6
    G-5174 FUEL HOSES FLAT WOUND SPR CLAMPS (BLK, Green) 6
    G-7091 FUEL VAPOR CANISTER (combo does 70-72) HXWA B SCREWS, FLAT WA, SPRING NUT 6
    G-5288 FUEL VAPOR LINE HOSES (70-71 combo) FLAT WOUND SPR CLAMPS. BLK not used 70FH 23
    G-5176 GAS TANK BOLTS, WA'S, NUTS, SCREWS, SPACERS 12
    G-4669 GREASE FITTINGS STRAIGHT STYLE 10
    G-4265 IDLER ARM > FRAME GR-8 HX BOLTS, WA'S, NUTS 6
    G-4607 LEAF SPRING MOUNTING @ FRONT HX PP CONI SEMS, SPECIAL U-NUTS 12
    G-4630 LEAF SPRINGS, Fr EYE GR-8 BOLTS, NUTS, WA'S 8
    G-4741 MASTER CYL BALANCE VALVE w DISC @ MASTER CYLINDER, HX EXT SEMS 1
    G-5144 MASTER CYLINDER FLNG NUTS 2
    G-4829 MASTER CYLINDER PUSH ROD > PEDAL RETAINING CLIP 1
    G-5150 PARKING BRAKE CONTROL > DASH HX CONI SEMS, FLNG NUTS 4
    G-4668 PITMAN ARM > GEAR BOX HX NUT, SPLIT WA 2
    G-4838 SHACKLES 11/16" AF MARSDEN NUTS ONLY 4
    G-4586 SHOCKS (Fr) - LWR MOUNTING HXWA CA SCREWS, U-NUTS 8
    G-6100 SHOCKS (Rr) - UPR MOUNTING HX SPLIT SEMS 4
    G-4694 SPEDOMETER CABLE > M/T, PG & some M38 1/4-20 X 5/8 HX SPLIT SEMS, RETAINER 2
    G-5363 SPEDOMETER CABLE > M38, M40 5/16-18 X 1/2 HX BOLT, Y-SHAPE RETAINER 2
    G-5141 STABILIZER BAR (Fr) BRACKETS HX TY-T SCREWS 4
    G-5140 STABILIZER BAR (Fr) END LINKS BLTS, RTNRS, BSHNGS, SPACERS, NUTS 22
    G-4354 STEERING GEAR "RAG" JOINT 12 PT BOLT ONLY 1
    G-5180 STEERING GEAR BOX > FRAME GR-8 HX BOLTS, FLAT WA'S 6
    G-5139 STEERING LINKAGE & BALL JOINTS GR-8 LRG HX SLOT NUTS, COTTER PINS 20
    G-4670 STEERING SHAFT > COUPLING REG & HVY NUTS, SPLIT WA'S 4
    G-7103 SUSPENSION BUMPERS (Fr) HX LOCK NUTS 2
    G-4337 SUSPENSION BUMPERS & BRACKETS (Rr) HX PP CONI SEMS, HXWA SCREWS, NUTS 10
    G-4169 TRANS CROSSMEMBER HX BOLTS, WA'S (RH SIDE), NUTS 14
    G-4603 TRANS INSULATOR HX BOLTS, FLAT & SPLIT WA'S 10
    G-6581 WHEEL CYLINDERS (2) HX INT TOOTH SEMS 4
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 70HS-S
