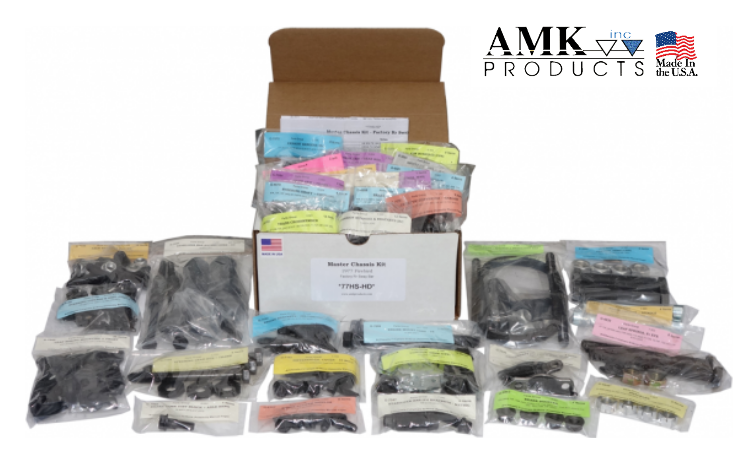

1969 Pontiac Firebird V8 w/Drum Brakes Chassis Master Bolt Kit 389 Pcs - AMK

1969 Pontiac Firebird V8 w/Drum Brakes Chassis Master Bolt Kit 389 Pcs - AMK

$348.13 USD
$0.00 USD $348.13 USD
Sale Sold out
1969 Pontiac Firebird V8 w/Drum Brakes Chassis Master Bolt Kit 389 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    69HS-DR 1 Master Chassis Kit, 1969 Firebird Drum Brake V8 ** contains the sub-kits listed below ** 389
    G-7111 ACCELERATOR SUPPORT & CABLE > DASH HXWA AB SCREWS 3
    G-6639 AXLE HSNG > SPRINGS - MULTI SPRING MULTI SPRINGS. T, U BOLTS, LOCK NUTS 14
    G-7143 AXLE RETAINER PLATES T-BOLTS, LOCK NUTS 16
    G-5863 BRAKE BOOSTER FLNG NUTS 4
    G-4642 BRAKE CABLES WIRE TYPE RETAINERS, HX NUTS 5
    G-5057 BRAKE DIST BLOCK (Fr) @ FRAME HXWA T SCREW 1
    G-4636 BRAKE DIST BLOCK (Fr) @ MASTER CYL HX SPLIT SEMS 1
    G-4960 BRAKE DISTRIBUTION BLOCK (Rr) > BRKT HX BOLT 1
    G-4348 BRAKE HOSE BRACKET (Rr) HX PP CONI SEMS 2
    G-5047 BRAKE HOSE BRACKETS (Fr) > FRAME HXWA T SCREWS 2
    G-4958 BRAKE HOSE RETAINERS U-RETAINERS 3
    G-5008 BRAKE PLATE ASSEMBLY (Fr Drum) > SPINDLE 1/2" SIZE GR-8 HX BOLTS, LOCK NUTS 8
    G-4660 CLUTCH BELLCRANK BRACKET > FRAME HXWA SCREWS 3
    G-4658 CLUTCH PEDAL PUSH ROD SEAL HXWA AB SCREWS 2
    G-4612 CONTROL ARM CROSS SHAFT (UPR) RETAINERS, HX BOLTS "SSC", WA'S 12
    G-4608 CONTROL ARMS (LWR) POINTED BOLTS, LOCK NUTS 8
    G-4627 CONTROL ARMS (UPR) GR-8 KNURL BOLTS, LOCK NUTS, SHIMS 18
    G-5466 DIFFERENTIAL COVER - 10 BOLT 7/8" L HXWA MACHINE SCREWS 10
    G-7338 DRIVESHAFT > REAR KNUCKLE U-BOLTS, NUTS, WA'S 10
    G-7114 ENGINE BODY BRKT > ENGINE BRACKETS HX BOLTS, RATCHET & SPLIT WA'S 6
    G-7113 ENGINE BRACKETS > BLOCK PLACE BOLTS, FLAT WA'S 8
    G-7112 ENGINE BRACKETS > FRAME - V8 HX SPLIT SEMS, HX NUTS, SPLIT WA'S 30
    G-7117 EXHAUST HANGERS - DUAL (CP, CNV combo) HX SPLIT SEMS, HX MS's (CP uses 2) 10
    G-7102 FUEL HOSES FLAT WOUND SPRING CLAMPS (Green) 6
    G-5913 FUEL RETURN LINES - Pontiac & Chevy 396/454 FLAT WOUND SPRING CLAMPS (Red) 4
    G-4663 GAS TANK CRG BOLTS, WA'S, NUTS, SCREWS 10
    G-4669 GREASE FITTINGS STRAIGHT STYLE 10
    G-4265 IDLER ARM > FRAME GR-8 HX BOLTS, WA'S, NUTS 6
    G-7049 LEAF SPRING MOUNTING @ FRONT BOLTS, WA'S, SPECIAL U-NUTS 24
    G-4630 LEAF SPRINGS, Fr EYE GR-8 BOLTS, NUTS, WA'S 8
    G-5144 MASTER CYLINDER FLNG NUTS 2
    G-4829 MASTER CYLINDER PUSH ROD > PEDAL RETAINING CLIP 1
    G-4347 PARKING BRAKE CONTROL > DASH HX CONI SEMS, FLNG NUTS 3
    G-4668 PITMAN ARM > GEAR BOX HX NUT, SPLIT WA 2
    G-4838 SHACKLES 11/16" AF MARSDEN NUTS ONLY 4
    G-4634 SHOCK BRACKETS (Rr) > BODY HX SPLIT SEMS, SEALING WA'S 8
    G-4586 SHOCKS (Fr) - LWR MOUNTING HXWA CA SCREWS, U-NUTS 8
    G-4898 SHOCKS (Rr) LWR MOUNTING - MULTI SPRG THICK HX NUTS, SPLIT WA'S 4
    G-4694 SPEDOMETER CABLE > M/T, PG & some M38 1/4-20 X 5/8 HX SPLIT SEMS, RETAINER 2
    G-5363 SPEDOMETER CABLE > M38, M40 5/16-18 X 1/2 HX BOLT, Y-SHAPE RETAINER 2
    G-4628 STABILIZER BAR (Fr) BRACKETS HXWA C SCREWS 4
    G-4955 STABILIZER BAR (Fr) CLAMPS HX BOLTS, NUTS, SPLIT & FLAT WA'S 8
    G-4837 STABILIZER BAR (Fr) END LINKS BLTS, RTNRS, BSHNGS, SPACERS, NUTS 22
    G-4354 STEERING GEAR "RAG" JOINT 12 PT BOLT ONLY 1
    G-4293 STEERING GEAR BOX > FRAME GR-8 HX BOLTS, FLAT WA'S 6
    G-4615 STEERING LINKAGE & BALL JOINTS SLOTTED NUTS, COTTER PINS 20
    G-7116 STEERING LOCK CONTROL LINKAGE SHIELD LRG HXWA AB SCREW 1
    G-4670 STEERING SHAFT > COUPLING REG & HVY NUTS, SPLIT WA'S 4
    G-4596 SUSPENSION BUMPERS (Fr) HX NUTS 2
    G-7110 SUSPENSION BUMPERS & BRACKETS (Rr) HX PP CONI SEMS, HX NUTS 8
    G-4169 TRANS CROSSMEMBER HX BOLTS, WA'S (RH SIDE), NUTS 14
    G-7115 TRANS INSULATOR HX BOLTS, SPLIT, FLAT WA'S 10
    G-6582 WHEEL CYLINDERS (4) HX INT TOOTH SEMS 8
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 69HS-DR
