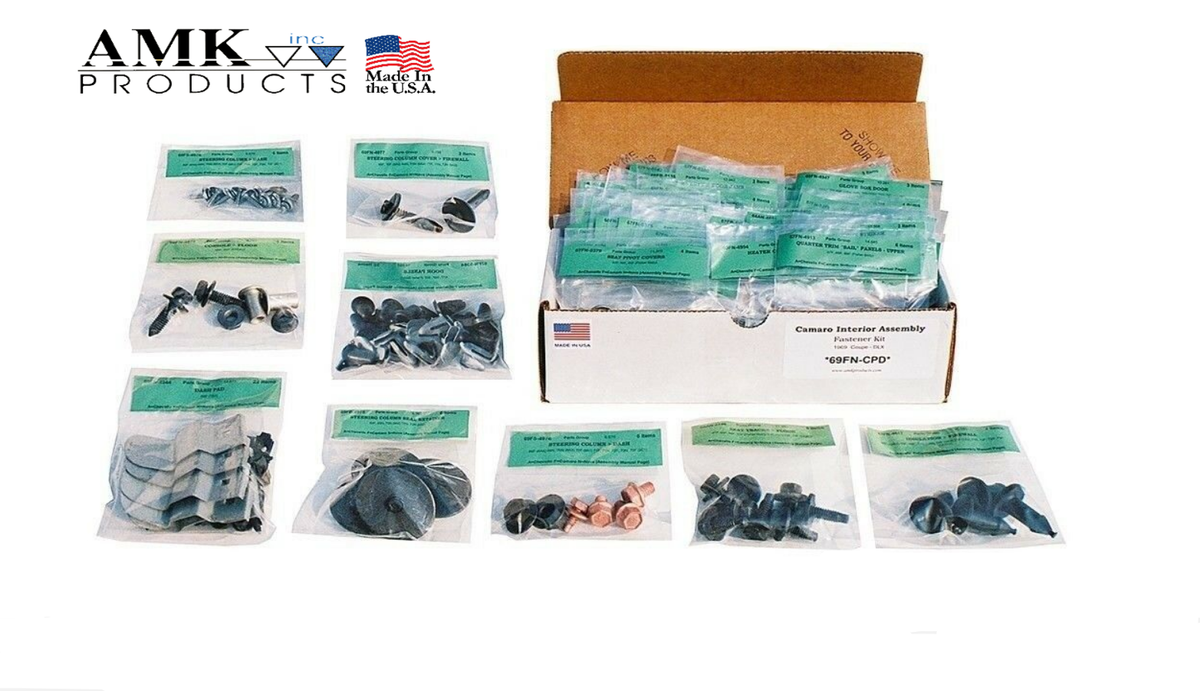

1969 Chevy Camaro Hardtop w/Deluxe Interior Master Bolt Kit 467 Pcs - AMK

1969 Chevy Camaro Hardtop w/Deluxe Interior Master Bolt Kit 467 Pcs - AMK

$355.99 USD
$0.00 USD $355.99 USD
Sale Sold out
1969 Chevy Camaro Hardtop w/Deluxe Interior Master Bolt Kit 467 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's interior in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    69FN-CPD 1 Master Interior Kit, 1969 Camaro Coupe DLX ** contains the sub-kits listed below ** 467
    G-5010 AC OUTLET CONTROL BEZELS @ KICK PANELS PH OV AB FLUSH SEMS, SPRING NUTS 8
    G-5009 AIR OUTLET BEZELS (w AC) > DASH PH OV & HX SEMS, SPRING NUTS, WA 11
    G-5135 AIR VENTS @ DOOR JAMB .28 D PH TRUSSWA AB SCREWS 2
    G-4622 ASH TRAY RETAINER PH PN B SCREWS 4
    G-5406 COAT HOOK CHROME PH PN SCREW 2
    G-6276 CONSOLE - ASH TRAY DOOR PINS, RETAINERS 4
    G-4878 CONSOLE > FLOOR HX PP CONI SEMS, RIV-NUTS, FLNG NUTS 6
    G-6588 CONSOLE ASH TRAY DOOR BUMPERS RUBBER BUMPERS 4
    G-5043 CONSOLE DOOR & HINGE HI-HXWA & PH PN SCREWS 8
    G-6587 CONSOLE DOOR BUMPERS .31 D X .15 H FLAT TOP RUBBER BUMPERS 2
    G-4881 CONSOLE INSERT & EMBLEM STAMPED NUTS, FLAT WA'S 10
    G-4884 CONSOLE LAMP LENS HXWA BT SCREWS 2
    G-4879 CONSOLE TOP FRAME & BRACKETS HXWA & PH PN BT SCREWS 9
    G-4691 COURTESY LAMPS, UNDERDASH PH PN SCREW, PH PN AB FLAT SEMS, WA 3
    G-4944 DASH PAD SPECIAL SCREWS, NUTS, RETAINERS 22
    G-4989 DIMMER SWITCH HXWA AB SCREWS 2
    G-5650 DOME LAMP PH PN AB SCREWS 2
    G-5419 DOOR HANDLE CUPS (DLX) CHROME PH OV SEMS 6
    G-5396 DOOR HANDLES (inside) - DLX PH OV SCREWS 4
    G-7040 DOOR PANEL CUP BRACKETS PH PN AB SCREWS 4
    G-5384 DOOR PANELS CLIPS, PLUGS (flexible!), PH OV AB SEMS 32
    G-5394 DOOR PULL STRAPS #14 PH PN (#10 HD) AB SCREWS 4
    G-7041 FILLER PANELS @ Rr SEAT BACK SIDES CHROME PH OV & PH PN SCREWS 14
    G-7044 FOLDING SEAT BACK CHROME PH OV AB SCREWS 7
    G-7045 FOLDING SEAT BACK PARTITION TRIM #8 X 3/4 PH OV AB .50 FIN SEMS, CHROME 3
    G-4986 FUSE PANEL > FIREWALL #10 x 2 1/4 HXWA AB SCREWS w SEALER 2
    G-6585 GLOVE BOX BUMPERS RUBBER BUMPERS 2
    G-4947 GLOVE BOX DOOR HX AB FLAT SEMS 3
    G-4360 GLOVE BOX LINER PH PN AB FLAT SEMS 6
    G-4943 GLOVE BOX STRIKER PN PN AB FLAT SEMS 2
    G-4942 GRAB BAR (on dash) .50 D 10-24 STAMPED NUTS 2
    G-7850 HEADLINER TACK STRIP (Fr) PH RNDWA AB SCREWS 8
    G-7851 HEADLINER TACK STRIPS (Rr) T-SHAPED RETAINERS, RNDWA AB SCREWS 16
    G-5417 HEADREST ESCUTCHEONS CHROME PH OV AB SCREWS 8
    G-4954 HEATER CONTROL > DASH PH OV AB FLUSH SEMS, SPRING NUTS 8
    G-4985 INSTRUMENT BEZEL > DASH HX FLAT AB SEMS, SPRNG NUTS, CONI KEPS 16
    G-5106 INSTRUMENT PANEL TRIM PLATE - RH PH PN AB FLAT SEMS, HX NUTS, WA'S 11
    G-4617 INSULATION > FIREWALL RUBBER RETAINERS 4
    G-5390 KICK PANELS CHROME PH OV FINISH WA SEMS .50 D 10
    G-4621 MIRROR (INSIDE) > BRACKET CHROME SLOT OV SHLDR SCREW, BUSHING 2
    G-5597 MIRROR, REMOTE CONTROL BEZEL SS/CHROME PH OV AB SCREWS 2
    G-4945 NAMEPLATE "ASTRO VENTILATION" STAMPED NUTS 2
    G-5107 NAMEPLATE, RH DASH "Camaro" - DLX STAMPED HX NUTS 3
    G-6571 PILLAR MOULDINGS - COUPE PH OV AB FLUSH SEMS 6
    G-5420 QUARTER TRIM PANELS - DLX COUPE CHROME PH OV AB FINWA SEMS .50 D 6
    G-5408 QUARTER TRIM PANELS @ Rr WINDOW SIDES PH OV AB SCREWS 4
    G-4913 QUARTER TRIM SAIL PANELS RETAINING CLIPS 6
    G-5095 RADIO BRACKETS HXWA AB SCREWS, SPRING NUTS 4
    G-5299 RADIO CONTROL SHAFTS & KNOBS Early 70F, SLOTTED NUTS, TEFLON WA'S 4
    G-5415 ROCKER PANEL COVER PLATES PH PN AB SCREWS 8
    G-4321 SCUFF PLATES @ DOOR OPENING SS/CHROME PH OV AB SCREWS 8
    G-5375 SEAT BACK (Fr) STOP BUMPERS CHROME PH PN AB SCREWS 2
    G-5398 SEAT BACK (Fr) STRIKERS (A-body bench) TRIM HX .62 CONI SEMS w PILOT 4
    G-5380 SEAT BACK (Rr) > FLOOR HX AB CONI TOOTH SEMS 2
    G-5381 SEAT BACK PANELS PH PN AB .50 FLAT SEMS, PH OV AB SCREWS 8
    G-6161 SEAT BACK PIVOTS RETANING CLIPS 4
    G-5376 SEAT BACK STOP CABLE (used @ RH only) PH WAFER MS SHLDR SCREWS 2
    G-5407 SEAT BELT SHOULDER HARNESS RETAINERS CHROME PH OV AB SCREWS 8
    G-5379 SEAT PIVOT COVERS SPLIT DART METAL RETAINERS 4
    G-5148 SEAT TRACKS > FLOOR HX CONI TOOTH .88 D SEMS 8
    G-7039 SPEAKERS (Stereo Coupe) > Rr SHELF PH OV M SCREWS, EXT KEPS NUTS 16
    G-5098 SPEAKERS & GRILLES @ KICK PANELS PH OV AB SCREWS, SPRING NUTS 16
    G-4976 STEERING COLUMN & BRACES > DASH HX SEMS, FLNG NUTS, COPPER PLATE SCREWS 8
    G-4977 STEERING COLUMN COVER (LWR) HX AB FLAT SEMS w SEALER 2
    G-4978 STEERING COLUMN COVER > DASH PH OV AB FLUSH SEMS, SPRING NUTS 4
    G-4975 STEERING COLUMN SEAL RETAINER HX AB FLAT SEMS, HXWA AB SCREWS 6
    G-4998 STEERING WHEEL SHROUD PH PN EXT SEMS 4
    G-4915 STEERING WHEEL SHROUD EMBLEM STAMPED NUTS 2
    G-5377 SUN VISOR & MIRROR BRACKETS - COUPE CHROME PH OV & PH PN AB SCREWS 9
    G-5378 SUN VISOR CLAMPS CHROME SLOT FILL SCREWS 2
    G-5108 TRIM PLATES - DLX RADIO & LIGHTS STAMPED NUTS 4
    G-4992 TURN SIGNAL LEVER PH PN AB SCREW 1
    G-5389 WEATHERSTRIP, QUARTER GLASS "U" .28 D PH RNDWA AB SCREWS 4
    G-5400 WINDOW CRANK HANDLES RETAINING CLIPS 4
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 69FN-CPD
