1969 Chevrolet Camaro 396 BB w/Disc Brakes Chassis Master Bolt Kit 377 Pcs - AMK

1969 Chevrolet Camaro 396 BB w/Disc Brakes Chassis Master Bolt Kit 377 Pcs - AMK

$425.99 USD
$0.00 USD $425.99 USD
Sale Sold out

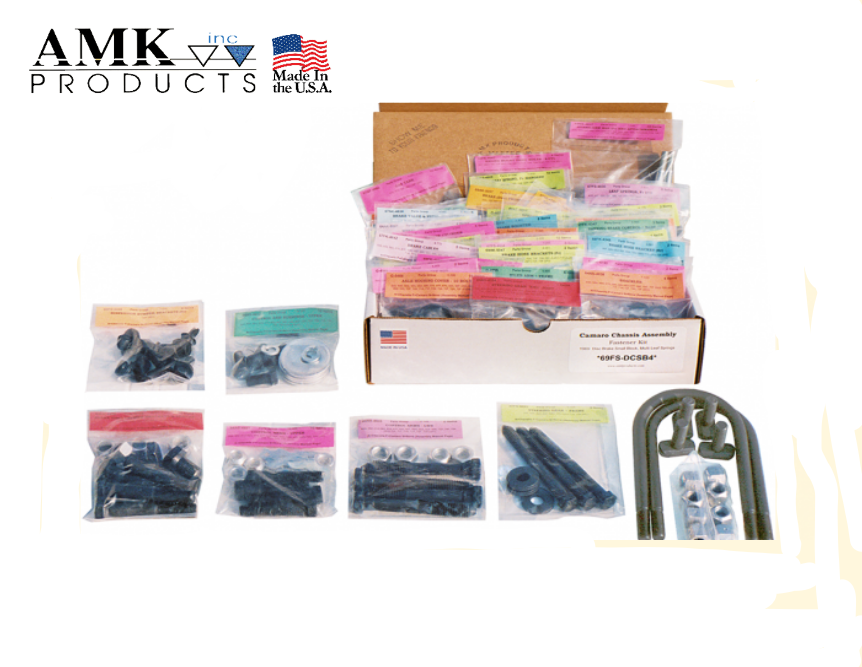

1969 Chevrolet Camaro 396 BB w/Disc Brakes & Multi Rear Springs Chassis Master Bolt Kit 377 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    69FS-BB 1 Master Chassis Kit, 1969 Camaro Disc Brake BB ** contains the sub-kits listed below ** 377
    G-4351 ACCELERATOR LEVER & SUPPORT HX BOLT, HXWA AB SCREWS, WA'S, NUT 6
    G-6639 AXLE HSNG > SPRINGS - MULTI SPRING MULTI SPRINGS. T, U BOLTS, LOCK NUTS 14
    G-5007 AXLE RETAINER PLATES GR-8 HX BOLTS, NUTS, SPLIT WA'S 24
    G-4738 BRAKE BOOSTER HX NUTS, SPLIT WA'S 8
    G-4888 BRAKE BOOSTER HOSE - 396 CLAMPS & WA FOR TUBE BRACKET 3
    G-4642 BRAKE CABLES WIRE TYPE RETAINERS, HX NUTS 5
    G-5468 BRAKE CALIPER BRACKETS & SHIELDS HX BOLTS, LOCK NUTS 10
    G-5057 BRAKE DIST BLOCK (Fr) @ FRAME HXWA T SCREW 1
    G-4636 BRAKE DIST BLOCK (Fr) @ MASTER CYL HX SPLIT SEMS 1
    G-4960 BRAKE DISTRIBUTION BLOCK (Rr) > BRKT HX BOLT 1
    G-4956 BRAKE HOSE (DISC) > CONTROL ARM HXWA T SCREWS 2
    G-4348 BRAKE HOSE BRACKET (Rr) HX PP CONI SEMS 2
    G-5047 BRAKE HOSE BRACKETS (Fr) > FRAME HXWA T SCREWS 2
    G-4958 BRAKE HOSE RETAINERS U-RETAINERS 3
    G-4660 CLUTCH BELLCRANK BRACKET > FRAME HXWA SCREWS 3
    G-4612 CONTROL ARM CROSS SHAFT (UPR) RETAINERS, HX BOLTS "SSC", WA'S 12
    G-4608 CONTROL ARMS (LWR) POINTED BOLTS, LOCK NUTS 8
    G-4627 CONTROL ARMS (UPR) GR-8 KNURL BOLTS, LOCK NUTS, SHIMS 18
    G-5467 DIFFERENTIAL COVER - 12 BOLT 5/8" L SRTD FLNG SCREWS "E" 12
    G-4796 DRIVESHAFT, TH400 69 > 302, 350, BB. All 71 > 1.56" C-C HOLE STRAPS, FLNG BOLTS 6
    G-4967 ENGINE MOUNT THRU - V8 (69F & all 70-72) POINTED BOLTS, WA'S, LOCK NUTS 8
    G-4651 ENGINE MOUNTS > BLOCK - V8 HX SPLIT SEMS 6
    G-4966 ENGINE MOUNTS > FRAME - V8 (69FN, 70N) HX SPLIT SEMS, WA'S, FLNG NUTS 14
    G-4344 EXHAUST HANGERS - DUAL - 68 CONV, All 69 HX T1 SCREWS, HX SPLIT SEMS MS 8
    G-4664 FUEL HOSES FLAT WOUND SPRING CLAMPS (Green) 4
    G-5052 FUEL VAPOR RETURN HOSES 6 FLAT WOUND SPRING CLAMPS (Red) 6
    G-4663 GAS TANK CRG BOLTS, WA'S, NUTS, SCREWS 10
    G-4669 GREASE FITTINGS STRAIGHT STYLE 10
    G-4265 IDLER ARM > FRAME GR-8 HX BOLTS, WA'S, NUTS 6
    G-4606 LEAF SPRING MOUNTING @ FRONT HX CA CONI SEMS, SPECIAL U-NUTS 12
    G-4630 LEAF SPRINGS, Fr EYE GR-8 BOLTS, NUTS, WA'S 8
    G-4741 MASTER CYL BALANCE VALVE w DISC @ MASTER CYLINDER, HX EXT SEMS 1
    G-4635 MASTER CYLINDER HX NUTS, SPLIT WA'S 4
    G-4829 MASTER CYLINDER PUSH ROD > PEDAL RETAINING CLIP 1
    G-4347 PARKING BRAKE CONTROL > DASH HX CONI SEMS, FLNG NUTS 3
    G-4668 PITMAN ARM > GEAR BOX HX NUT, SPLIT WA 2
    G-4838 SHACKLES 11/16" AF MARSDEN NUTS ONLY 4
    G-4634 SHOCK BRACKETS (Rr) > BODY HX SPLIT SEMS, SEALING WA'S 8
    G-7119 SHOCKS (Fr) - LWR MOUNTING HXWA MS's, J-NUTS 8
    G-4898 SHOCKS (Rr) LWR MOUNTING - MULTI SPRG THICK HX NUTS, SPLIT WA'S 4
    G-4694 SPEDOMETER CABLE > M/T, PG & some M38 1/4-20 X 5/8 HX SPLIT SEMS, RETAINER 2
    G-5141 STABILIZER BAR (Fr) BRACKETS HX TY-T SCREWS 4
    G-4955 STABILIZER BAR (Fr) CLAMPS HX BOLTS, NUTS, SPLIT & FLAT WA'S 8
    G-4837 STABILIZER BAR (Fr) END LINKS BLTS, RTNRS, BSHNGS, SPACERS, NUTS 22
    G-4354 STEERING GEAR "RAG" JOINT 12 PT BOLT ONLY 1
    G-4293 STEERING GEAR BOX > FRAME GR-8 HX BOLTS, FLAT WA'S 6
    G-4615 STEERING LINKAGE & BALL JOINTS SLOTTED NUTS, COTTER PINS 20
    G-4670 STEERING SHAFT > COUPLING REG & HVY NUTS, SPLIT WA'S 4
    G-4339 SUSPENSION BUMPER (Rr) BRACKETS HX PP CONI SEMS, HXWA T SCREWS 8
    G-4596 SUSPENSION BUMPERS (Fr) HX NUTS 2
    G-4169 TRANS CROSSMEMBER HX BOLTS, WA'S (RH SIDE), NUTS 14
    G-4603 TRANS INSULATOR HX BOLTS, FLAT & SPLIT WA'S 10
    G-6581 WHEEL CYLINDERS (2) HX INT TOOTH SEMS 4
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 69FS-BB
