1968 Ford Fairlane 289/302 w/Drum Front Brakes Chassis Master Bolt Kit 311 Pcs - AMK

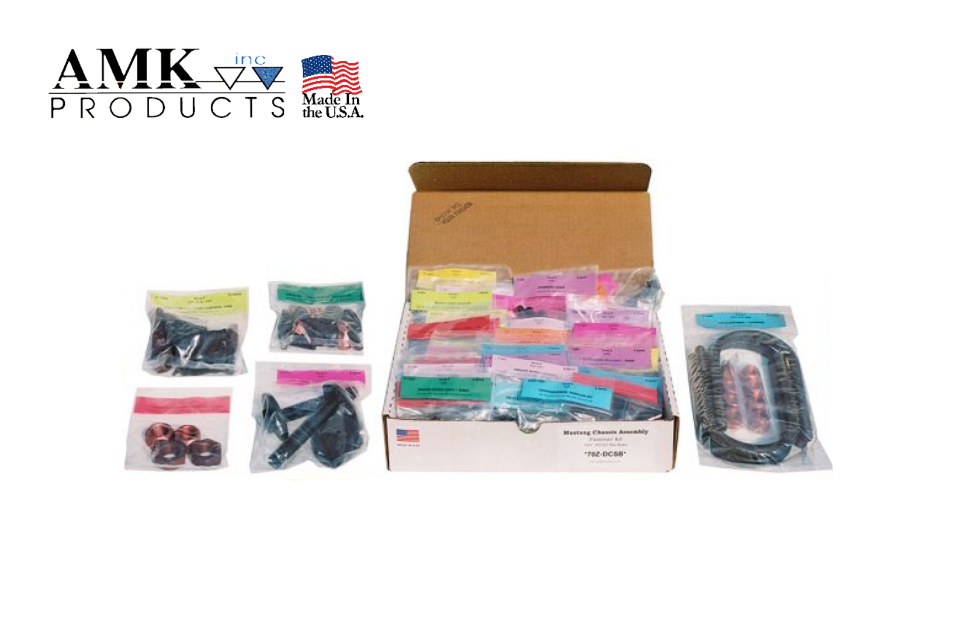

  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    68O-DRSB 1 Master Chassis Kit, 1968 Fairlane Drum Brake 289/302 ** contains the sub-kits listed below ** 311
    F-1459 ACCEL BELLCRANK > FIREWALL - 8 CYL HXWA AB SCREWS 3
    F-3442 AXLE HOUSING > SPRINGS - STD 6 3/4" U-BOLTS, FLNG NUTS 12
    F-1439 AXLE RETAINER PLATES - 8 CYL T-BOLTS, CAD LOCK NUTS 16
    F-1616 BRAKE ASSEMBLY (front drum) > SPINDLE T-BOLTS, LOCK NUTS 16
    F-1479 BRAKE BOOSTER > FIREWALL HX SPLIT SEMS, FLNG NUTS 5
    F-579 BRAKE DRUM RETAINERS GREEN PUSH ON RETAINERS 6
    F-1249 BRAKE HOSE BRKTS (drum) (Fr) > BODY HXWA C SCREWS 4
    F-577 BRAKE HOSES (drum) > BRACKET U-CLIPS 3
    F-670 BRAKE LIGHT SWITCH RETAINING PIN 1
    F-595 COIL SPRING SEATS (perches) HUG-LOK NUTS 4
    F-1515 CONTROL ARMS (LWR) GR-8 CAM BOLTS, RED NUTS, WA'S 8
    F-3311 CONTROL ARMS (UPR) GR-8 1/2-13 KNURLED BOLTS, RED NUTS 12
    F-598 DIFFERENTIAL CARRIER > HOUSING CAD LOCK NUTS, COPPER WA'S 20
    F-1273 DRIVESHAFT - V8, 6 CYL 67-68 A/T, All 69 > 5/16" U-BOLTS, LOCK NUTS 6
    F-3900 ENG BODY BRACKETS - 302/351 HX BOLTS, FLNG NUTS 12
    F-752 ENG INSULATOR > BLOCK - 289/302/351 SPL FLNG BOLTS 4
    F-1646 GAS TANK HXWA AB SCREWS 14
    F-3910 GAS TANK FILLER NECK HXWA A SCREWS 5
    F-571 GREASE PLUGS, CHASSIS HX PLUGS 9
    F-1323 IDLER ARM HX BOLTS "F", LOCK NUTS, CLIPPED WA'S 6
    F-3783 LEAF SPRING MOUNTING @ FRONT FLNG BOLTS & NUTS 4
    F-1475 MASTER CYLINDER w POWER BRAKES FLNG NUTS 2
    F-1472 MASTER CYLINDER w/o POWER BRAKES HX SPLIT SEMS 2
    F-1333 PARKING BRAKE CONTROL > BODY HXWA SRTD SCREWS 3
    F-614 PITMAN ARM > GEAR BOX HX JAM NUT, SPLIT WA 2
    F-1214 PROPORTIONING VALVE > APRON 5/16-18 HXWA F SCREW 1
    F-665 SHACKLE ASSY (Rr) - NUTS ONLY LOCK NUTS 4
    F-3908 SHOCK BRACKETS (Fr) LOW HD CRG BOLTS, EXT KEPS NUTS 12
    F-1205 STABILIZER BAR (Fr) BRACKETS HX BOLTS, LOCK NUTS 8
    F-3950 STABILIZER BAR (Fr) END LINKS BLTS, RTNRS, BSHNGS, SPACERS, NUTS 22
    F-610 STEERING COUPLING < 11/4/68 12 PT BOLT, 5/16-24 LOCK NUTS 3
    F-1107 STEERING GEAR BOX HX BOLTS, CLIPPED FLAT & SPLIT WA'S 9
    F-317 STEERING LINKAGE w PS SLOTTED NUTS, COTTER PINS, FLAT WA 23
    F-660 STRUT ROD THREADED ENDS > BODY LOCK NUTS, SLOTTED NUTS, PINS 8
    F-1264 STRUT RODS > LWR CONTROL ARM 1/2-13 SPL KNRLD BOLTS, NUTS, PINS 12
    F-1486 SUSP BUMPER (Rr) 65-66 V8, 67-68 289-2V HX SCREWS 2
    F-2961 SUSPENSION BUMPERS (Fr) HUG-LOK NUTS 2
    F-3904 TRANS CROSSMEMBER POINTED BOLTS, SLOT NUTS, WA'S, PINS 8
    F-3906 TRANS INSULATOR - All POINTED HX BOLTS, NUTS, WA'S 10
    F-3912 WHEEL CYLINDERS (4) - 250 & All 8 CYL 5/16-18 HX EXT SEMS 8
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 68O-DRSB
