1967 Pontiac GTO V8 w/Disc Brakes Chassis Master Bolt Kit 333 Pcs - AMK

1967 Pontiac GTO V8 w/Disc Brakes Chassis Master Bolt Kit 333 Pcs - AMK

$389.99 USD
$0.00 USD $389.99 USD
Sale Sold out

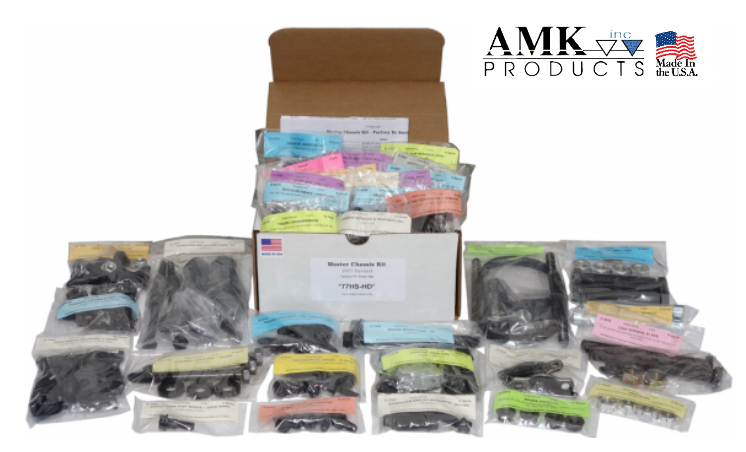

1967 Pontiac GTO V8 w/Disc Brakes Chassis Master Bolt Kit 333 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    67TS-DC 1 Master Chassis Kit, 1967 Disc Brake GTO ** contains the sub-kits listed below ** 333
    G-7123 ACCELERATOR CABLE STOP > DASH HXWA AB SCREWS 3
    G-7122 ACCELERATOR SUPPORT > DASH HXWA AB SCREWS 2
    G-7143 AXLE RETAINER PLATES T-BOLTS, LOCK NUTS 16
    G-5863 BRAKE BOOSTER FLNG NUTS 4
    G-4642 BRAKE CABLES WIRE TYPE RETAINERS, HX NUTS 5
    G-5468 BRAKE CALIPER BRACKETS & SHIELDS HX BOLTS, LOCK NUTS 10
    G-6045 BRAKE CALIPERS > BRACKET GR-8 HX BOLTS, SPLIT WA'S 8
    G-4705 BRAKE DISTRIBUTION BLOCK TO FRAME, HX C SCREW. 1
    G-4960 BRAKE DISTRIBUTION BLOCK (Rr) > BRKT HX BOLT 1
    G-5657 BRAKE HOSE (DISC) BRACKET > CALIPERS HXWA T SCREWS 2
    G-6215 BRAKE HOSE > CALIPER BRACKET U-RETAINERS 2
    G-5620 BRAKE HOSE BRACKETS (Fr) > FRAME HX C SCREWS 2
    G-4958 BRAKE HOSE RETAINERS U-RETAINERS 3
    G-7492 CLUTCH PEDAL PUSH ROD SEAL HXWA AB SCREWS 3
    G-5458 CONTROL ARM BUSHINGS (UPR) RETAINERS, LOCK NUTS 8
    G-4608 CONTROL ARMS (LWR) POINTED BOLTS, LOCK NUTS 8
    G-4609 CONTROL ARMS (Rr) GR-8 POINTED BOLTS, LOCK NUTS 16
    G-5539 CONTROL ARMS (Rr) REINFORCEMENTS HARDENED FLAT WA'S 2
    G-4627 CONTROL ARMS (UPR) GR-8 KNURL BOLTS, LOCK NUTS, SHIMS 18
    G-5466 DIFFERENTIAL COVER - 10 BOLT 7/8" L HXWA MACHINE SCREWS 10
    G-7338 DRIVESHAFT > REAR KNUCKLE U-BOLTS, NUTS, WA'S 10
    G-7113 ENGINE BRACKETS > BLOCK PLACE BOLTS, FLAT WA'S 8
    G-7125 ENGINE MOUNT THRU - V8 4 7/8" GR-5 HX BOLTS w SPECIAL POINT 2
    G-4597 ENGINE MOUNTS > FRAME GR-5 HX BOLTS, FLAT WA'S, NUTS 21
    G-5573 EXHAUST HANGERS - DUAL HXWA C SCREWS, RETAINERS 10
    G-5056 FUEL HOSES FLAT WOUND SPRING CLAMPS (Yellow) 4
    G-7127 GAS TANK CRG BOLTS, FLNG NUTS 4
    G-7128 GAS TANK VENT PIPE R-CLIP HXWA AB SCREW 2
    G-4669 GREASE FITTINGS STRAIGHT STYLE 10
    G-4265 IDLER ARM > FRAME GR-8 HX BOLTS, WA'S, NUTS 6
    G-7129 MASTER CYL BALANCE VALVE w DISC HX EXT SEMS 1
    G-5144 MASTER CYLINDER FLNG NUTS 2
    G-4829 MASTER CYLINDER PUSH ROD > PEDAL RETAINING CLIP 1
    G-7121 PARKING BRAKE CONTROL > DASH FLANGE NUTS, HXWA SCREW 3
    G-4668 PITMAN ARM > GEAR BOX HX NUT, SPLIT WA 2
    G-7119 SHOCKS (Fr) - LWR MOUNTING HXWA MS's, J-NUTS 8
    G-5859 SHOCKS (Rr) HXWA SCREWS, TK NUTS, SPLIT WA'S 12
    G-4694 SPEDOMETER CABLE > M/T, PG & some M38 1/4-20 X 5/8 HX SPLIT SEMS, RETAINER 2
    G-5363 SPEDOMETER CABLE > M38, M40 5/16-18 X 1/2 HX BOLT, Y-SHAPE RETAINER 2
    G-7124 SPEDOMETER CABLE CLIP > DASH HXWA TY-T SCREWS 2
    G-5485 SPRINGS (Rr) - CLAMPS HX BOLTS, NUTS, FLAT & SPLIT WA'S 8
    G-4628 STABILIZER BAR (Fr) BRACKETS HXWA C SCREWS 4
    G-5481 STABILIZER BAR (Fr) END LINKS BOLTS, RETAINERS, BUSHINGS, NUTS 22
    G-4354 STEERING GEAR "RAG" JOINT 12 PT BOLT ONLY 1
    G-5180 STEERING GEAR BOX > FRAME GR-8 HX BOLTS, FLAT WA'S 6
    G-4615 STEERING LINKAGE & BALL JOINTS SLOTTED NUTS, COTTER PINS 20
    G-4670 STEERING SHAFT > COUPLING REG & HVY NUTS, SPLIT WA'S 4
    G-4596 SUSPENSION BUMPERS (Fr) HX NUTS 2
    G-4169 TRANS CROSSMEMBER HX BOLTS, WA'S (RH SIDE), NUTS 14
    G-4603 TRANS INSULATOR HX BOLTS, FLAT & SPLIT WA'S 10
    G-7126 TRANSMISSION CONTROL SPLASH SHIELD HX TY-C SCREWS 2
    G-6581 WHEEL CYLINDERS (2) HX INT TOOTH SEMS 4
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 67TS-DC
