1967 Mustang Shelby 390/428 w/Disc Front Brakes Chassis Master Bolt Kit 374 Pcs

1967 Mustang Shelby 390/428 w/Disc Front Brakes Chassis Master Bolt Kit 374 Pcs

$475.99 USD
$0.00 USD $475.99 USD
Sale Sold out

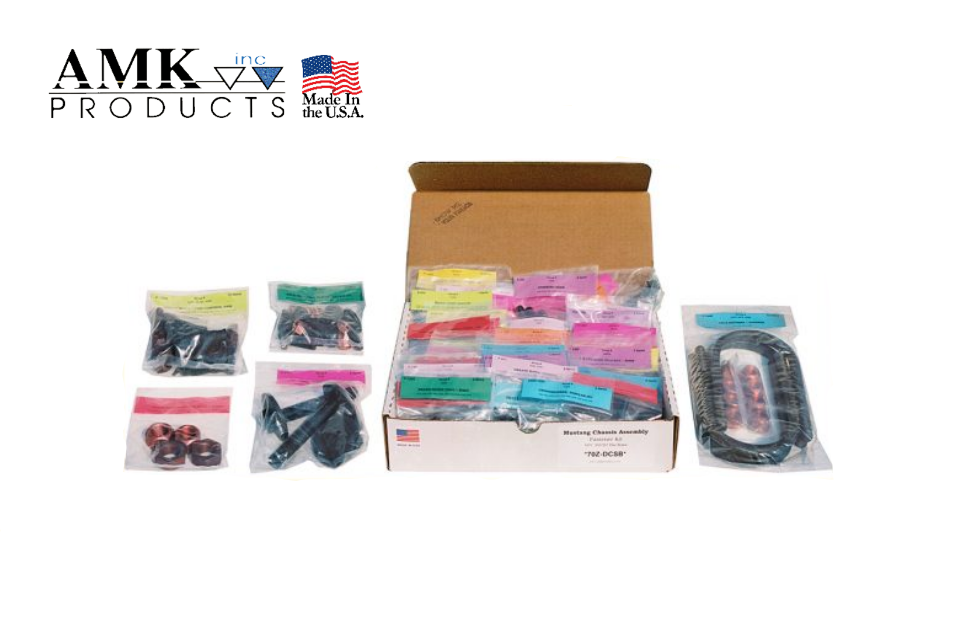

1967 Mustang Shelby 390/428 w/Disc Front Brakes Chassis Master Bolt Kit 374 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    67Z-DCBB 1 Master Chassis Kit, 1967 Mustang Disc Brake 390/428 ** contains the sub-kits listed below ** 374
    F-1458 ACCEL BELLCRANK > FIREWALL - 8 CYL HXWA A SCREWS 3
    F-1403 AXLE HOUSING > SPRINGS 5 1/2" U-BOLTS, FLNG NUTS 12
    F-1439 AXLE RETAINER PLATES - 8 CYL T-BOLTS, CAD LOCK NUTS 16
    F-1478 BRAKE BOOSTER > FIREWALL HX SPLIT SEMS, FLNG NUTS 5
    F-574 BRAKE CABLES > BODY RETAINERS, HXWA SCREWS, NUT, WA'S 10
    F-1471 BRAKE CALIPER BRACKETS > SPINDLE GR-8 HXWA BOLTS, LOCK NUTS 16
    F-2916 BRAKE CALIPERS > BRACKET DRILLED GR-8 BOLTS 4
    F-579 BRAKE DRUM RETAINERS GREEN PUSH ON RETAINERS 6
    F-1150 BRAKE HOSE BRKTS (Fr) > BODY HX HD C SCREWS 2
    F-576 BRAKE HOSES > BRACKET U-CLIPS 3
    F-670 BRAKE LIGHT SWITCH RETAINING PIN 1
    F-595 COIL SPRING SEATS (perches) HUG-LOK NUTS 4
    F-3913 CONTROL ARMS (LWR) GR-8 CAM BOLTS, NUTS, WA'S 8
    F-2490 CONTROL ARMS (UPR) GR-8 KNURLED BOLTS, NUTS, SPLIT WA'S 12
    F-1280 CROSSMEMBER, TUBULAR (Fr) SPL HX CNTRSNK BOLTS 2
    F-598 DIFFERENTIAL CARRIER > HOUSING CAD LOCK NUTS, COPPER WA'S 20
    F-1273 DRIVESHAFT - V8, 6 CYL 67-68 A/T, All 69 > 5/16" U-BOLTS, LOCK NUTS 6
    F-178 ENG BODY BRACKETS - V8 FLNG BOLTS & NUTS 12
    F-184 ENG INSULATOR & BLOCK BRKT'S - 390/428 HX BOLTS, LOCKNUTS, SPLIT WA'S 16
    F-753 ENG INSULATOR > BODY BRKT'S - V8 4 3/4" BOLTS, FLNG NUTS, FLAT WA'S 6
    F-1452 EXHAUST HANGERS - DUAL CRG BOLTS, HX & HXWA SCREWS, NUTS 20
    F-411 GAS CAP (pop open) PH FLAT A SCREWS ONLY 4
    F-225 GAS TANK HXWA A SCREWS 11
    F-412 GAS TANK FILLER NECK w TWIST CAP HXWA B SCREWS 5
    F-571 GREASE PLUGS, CHASSIS HX PLUGS 9
    F-351 IDLER ARM HX BOLTS "F", LOCK NUTS, CLIPPED WA'S 6
    F-1065 LEAF SPRING MOUNTING @ FRONT POINTED HX BOLTS, FLNG NUTS, WA'S 6
    F-1474 MASTER CYLINDER w POWER BRAKES HX NUTS, SPLIT WA'S 4
    F-508 P/S CYLINDER BRACKET > BODY HX BOLTS "F", LOCK NUTS, WA'S 7
    F-675 P/S HOSE SUPPORT INSULATOR RETAINER HXWA F SCREWS 2
    F-1326 PARKING BRAKE CONTROL > BODY POZI PN EXT SEMS, CAGED & FLNG NUTS 6
    F-1390 PITMAN ARM > GEAR BOX w 1 1/8" SHAFT 1 5/16 AF HX JAM NUT, SPLIT WA 2
    F-1214 PROPORTIONING VALVE > APRON 5/16-18 HXWA F SCREW 1
    F-665 SHACKLE ASSY (Rr) - NUTS ONLY LOCK NUTS 4
    F-312 SHOCK BRACKETS (Fr) LOW HD CRG BOLTS, FLNG NUTS 12
    F-344 SHOCKS (Fr) HX EXT SEMS "Anchor", NUTS, WA'S 12
    F-1204 STABILIZER BAR (Fr) BRACKETS HX BOLTS, LOCK NUTS 8
    F-3951 STABILIZER BAR (Fr) END LINKS BLTS, RTNRS, BSHNGS, SPACERS, NUTS 22
    F-3934 STEERING COUPLING w/o TILT 12 PT BOLT, LOCK NUTS 3
    F-349 STEERING GEAR BOX HX BOLTS, CLIPPED FLAT & SPLIT WA'S 9
    F-317 STEERING LINKAGE w PS SLOTTED NUTS, COTTER PINS, FLAT WA 23
    F-659 STRUT ROD THREADED ENDS > BODY LOCK NUTS 4
    F-1463 STRUT RODS > LWR CONTROL ARM 7/16-20 KNRLD BOLTS, LOCK NUTS 8
    F-2964 SUSP BUMPER (Rr) - 289HP, 390, 67-68 GT LOCK NUT 1
    F-2961 SUSPENSION BUMPERS (Fr) HUG-LOK NUTS 2
    F-177 TRANS CROSSMEMBER HXWA BOLTS, LOCK NUTS, FLAT WA 5
    F-356 WHEEL CYLINDERS (2) - 250 & All 8 CYL 5/16-18 HX EXT SEMS 4
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 67Z-DCBB
