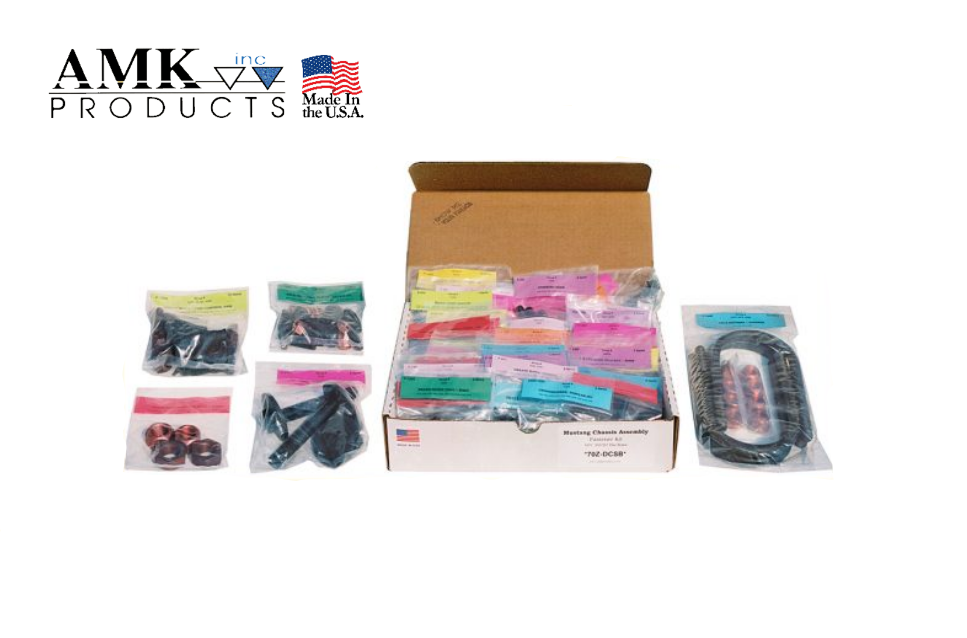

1966 Ford Mustang Shelby 289/289HP w/Disc Brakes Chassis Master Bolt Kit 348 Pcs

1966 Ford Mustang Shelby 289/289HP w/Disc Brakes Chassis Master Bolt Kit 348 Pcs

$425.99 USD
$0.00 USD $425.99 USD
Sale Sold out
1966 Ford Mustang Shelby 289/289HP w/Disc Front Brakes Chassis Master Bolt Kit 348 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    66Z-DCSB 1 Master Chassis Kit, 1966 Mustang Disc Brake 289/289HP ** contains the sub-kits listed below ** 348
    F-746 ACCEL BELLCRANK > FIREWALL - 8 CYL HXWA A SCREWS 3
    F-1441 AXLE HOUSING > SPRINGS 5.0" U-BOLTS, FLNG NUTS 12
    F-1439 AXLE RETAINER PLATES - 8 CYL T-BOLTS, CAD LOCK NUTS 16
    F-1643 BRAKE CABLES > BODY HXWA AB SCREWS, RETAINERS, NUT 8
    F-1470 BRAKE CALIPER BRACKETS > SPINDLE GR-8 HXWA BOLTS, FLNG NUTS 16
    F-3262 BRAKE CALIPER SHIELDS HX EXT SEMS 4
    F-603 BRAKE CALIPERS > BRACKET PLACE SHLDR BOLTS 4
    F-579 BRAKE DRUM RETAINERS GREEN PUSH ON RETAINERS 6
    F-1150 BRAKE HOSE BRKTS (Fr) > BODY HX HD C SCREWS 2
    F-576 BRAKE HOSES > BRACKET U-CLIPS 3
    F-670 BRAKE LIGHT SWITCH RETAINING PIN 1
    F-594 COIL SPRING SEATS - NUTS ONLY 3/8-24 MARSDEN NUTS 4
    F-1111 CONTROL ARMS - LWR HX BOLTS, NUTS, SPLIT WA'S 6
    F-3658 CONTROL ARMS (UPR) GR-8 1/2-20 KNURLED BOLTS, FLNG NUTS 8
    F-1280 CROSSMEMBER, TUBULAR (Fr) SPL HX CNTRSNK BOLTS 2
    F-598 DIFFERENTIAL CARRIER > HOUSING CAD LOCK NUTS, COPPER WA'S 20
    F-1305 DISTRIBUTION BLOCK > APRON HX C SCREW 1
    F-1273 DRIVESHAFT - V8, 6 CYL 67-68 A/T, All 69 > 5/16" U-BOLTS, LOCK NUTS 6
    F-178 ENG BODY BRACKETS - V8 FLNG BOLTS & NUTS 12
    F-1310 ENG INSULATOR > BLOCK - 260/289 HX BOLTS, SPLIT WA'S 8
    F-753 ENG INSULATOR > BODY BRKT'S - V8 4 3/4" BOLTS, FLNG NUTS, FLAT WA'S 6
    F-1451 EXHAUST HANGERS - DUAL CRG BOLTS, HX & PH PN SCREWS, NUTS 20
    F-225 GAS TANK HXWA A SCREWS 11
    F-412 GAS TANK FILLER NECK w TWIST CAP HXWA B SCREWS 5
    F-571 GREASE PLUGS, CHASSIS HX PLUGS 9
    F-351 IDLER ARM HX BOLTS "F", LOCK NUTS, CLIPPED WA'S 6
    F-1065 LEAF SPRING MOUNTING @ FRONT POINTED HX BOLTS, FLNG NUTS, WA'S 6
    F-1431 MASTER CYLINDER w/o POWER BRAKES HX SPLIT SEMS 2
    F-1324 P/S CYLINDER BRACKET > BODY HX BOLTS "F", HX NUTS, WA'S 8
    F-1803 P/S HOSE SUPPORT INSULATOR RETAINER HXWA F SCREW 1
    F-800 PARKING BRAKE CONTROL > BODY PH PN EXT SEMS, CAGED & LOCK NUTS 8
    F-613 PITMAN ARM > GEAR BOX w 1.0 SHAFT 1 1/8 AF HX JAM NUT, SPLIT WA 2
    F-1397 PROPORTIONING VALVE > APRON SRTD HX FLNG SCREW 1
    F-664 SHACKLE ASSY (Rr) - NUTS ONLY MARSDEN NUTS 4
    F-311 SHOCK BRACKETS (Fr) LOW HD CRG BOLTS, EXT KEPS NUTS 12
    F-343 SHOCKS (Fr) EXT HX SEMS "SEMS", LOCK NUTS, WA'S 12
    F-1443 STABILIZER BAR (Fr) BRACKETS HX BOLTS, LOCK NUTS 8
    F-3951 STABILIZER BAR (Fr) END LINKS BLTS, RTNRS, BSHNGS, SPACERS, NUTS 22
    F-349 STEERING GEAR BOX HX BOLTS, CLIPPED FLAT & SPLIT WA'S 9
    F-1302 STEERING LINKAGE - 289 w PS SLOTTED NUTS, COTTER PINS, FLAT WA 25
    F-1156 STRUT RODS > LWR CONTROL ARM HX BOLTS, LOCK NUTS 8
    F-1486 SUSP BUMPER (Rr) 65-66 V8, 67-68 289-2V HX SCREWS 2
    F-3212 TRANS CROSSMEMBER PILOTED FLNG BOLTS, LOCK NUTS, WA 5
    F-356 WHEEL CYLINDERS (2) - 250 & All 8 CYL 5/16-18 HX EXT SEMS 4
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 66Z-DCSB
