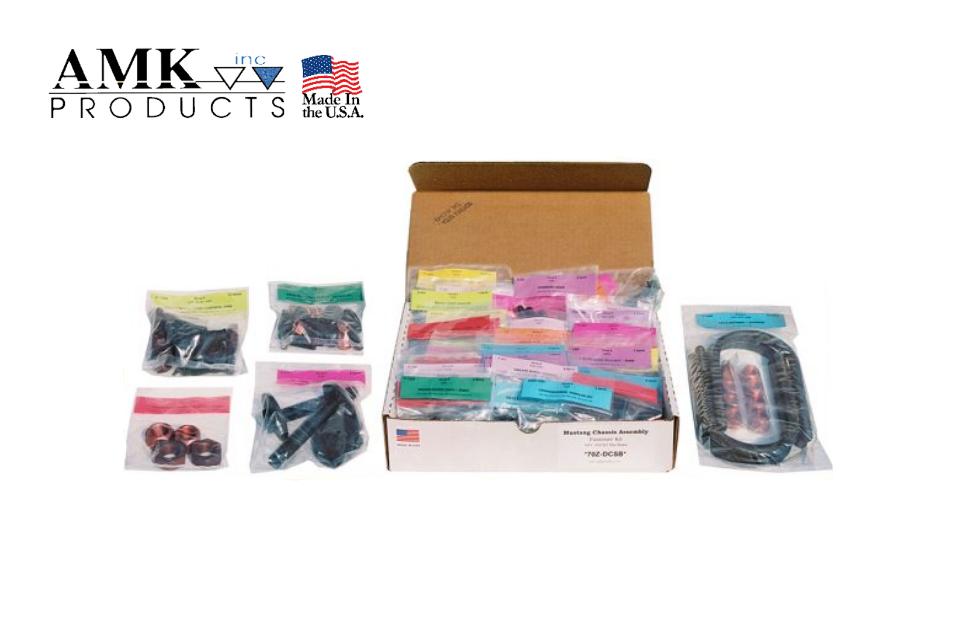

1966 Ford Mustang 170/200 w/Drum Brakes Chassis Master Bolt Kit 312 Pcs - AMK

1966 Ford Mustang 170/200 w/Drum Brakes Chassis Master Bolt Kit 312 Pcs - AMK

$350.19 USD
$0.00 USD $350.19 USD
Sale Sold out
1966 Ford Mustang 170/200 w/Drum Front Brakes Chassis Master Bolt Kit 312 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    66Z-DRSX 1 Master Chassis Kit, 1966 Mustang Drum Brake 6 cylinder ** contains the sub-kits listed below ** 312
    F-1457 ACCEL BELLCRANK > FIREWALL - 6 CYL HXWA A SCREWS 4
    F-1441 AXLE HOUSING > SPRINGS 5.0" U-BOLTS, FLNG NUTS 12
    F-1523 AXLE RETAINER PLATES - 6 CYL (exc 250) SMALL HEAD T-BOLTS, CAD LOCK NUTS 16
    F-1616 BRAKE ASSEMBLY (front drum) > SPINDLE T-BOLTS, LOCK NUTS 16
    F-1643 BRAKE CABLES > BODY HXWA AB SCREWS, RETAINERS, NUT 8
    F-579 BRAKE DRUM RETAINERS GREEN PUSH ON RETAINERS 6
    F-1150 BRAKE HOSE BRKTS (Fr) > BODY HX HD C SCREWS 2
    F-576 BRAKE HOSES > BRACKET U-CLIPS 3
    F-670 BRAKE LIGHT SWITCH RETAINING PIN 1
    F-594 COIL SPRING SEATS - NUTS ONLY 3/8-24 MARSDEN NUTS 4
    F-1111 CONTROL ARMS - LWR HX BOLTS, NUTS, SPLIT WA'S 6
    F-3658 CONTROL ARMS (UPR) GR-8 1/2-20 KNURLED BOLTS, FLNG NUTS 8
    F-1280 CROSSMEMBER, TUBULAR (Fr) SPL HX CNTRSNK BOLTS 2
    F-598 DIFFERENTIAL CARRIER > HOUSING CAD LOCK NUTS, COPPER WA'S 20
    F-1305 DISTRIBUTION BLOCK > APRON HX C SCREW 1
    F-1465 DRIVESHAFT - 6 CYL - All 65-66, M/T 67-68 1/4" U-BOLTS, NUTS, SPLIT WA'S 6
    F-180 ENG BODY BRACKETS - 6 CYL FLNG BOLTS & NUTS 12
    F-1447 ENG INSULATOR - 6 CYL HX SPLIT SEMS, LOCK NUTS, FLAT WA'S 8
    F-1245 EXHAUST HANGERS - SINGLE HX C SCREWS 6
    F-225 GAS TANK HXWA A SCREWS 11
    F-412 GAS TANK FILLER NECK w TWIST CAP HXWA B SCREWS 5
    F-571 GREASE PLUGS, CHASSIS HX PLUGS 9
    F-351 IDLER ARM HX BOLTS "F", LOCK NUTS, CLIPPED WA'S 6
    F-1065 LEAF SPRING MOUNTING @ FRONT POINTED HX BOLTS, FLNG NUTS, WA'S 6
    F-1431 MASTER CYLINDER w/o POWER BRAKES HX SPLIT SEMS 2
    F-800 PARKING BRAKE CONTROL > BODY PH PN EXT SEMS, CAGED & LOCK NUTS 8
    F-613 PITMAN ARM > GEAR BOX w 1.0 SHAFT 1 1/8 AF HX JAM NUT, SPLIT WA 2
    F-664 SHACKLE ASSY (Rr) - NUTS ONLY MARSDEN NUTS 4
    F-311 SHOCK BRACKETS (Fr) LOW HD CRG BOLTS, EXT KEPS NUTS 12
    F-343 SHOCKS (Fr) EXT HX SEMS "SEMS", LOCK NUTS, WA'S 12
    F-1443 STABILIZER BAR (Fr) BRACKETS HX BOLTS, LOCK NUTS 8
    F-3951 STABILIZER BAR (Fr) END LINKS BLTS, RTNRS, BSHNGS, SPACERS, NUTS 22
    F-349 STEERING GEAR BOX HX BOLTS, CLIPPED FLAT & SPLIT WA'S 9
    F-1303 STEERING LINKAGE - 6 CYL w PS SLOTTED NUTS, COTTER PINS 24
    F-1156 STRUT RODS > LWR CONTROL ARM HX BOLTS, LOCK NUTS 8
    F-3212 TRANS CROSSMEMBER PILOTED FLNG BOLTS, LOCK NUTS, WA 5
    F-1157 TRANS INSULATOR - 6 CYL HX BOLTS, HX SPLIT SEMS, NUTS, WA'S 10
    F-1772 WHEEL CYLINDERS (4) - 170/200 1/4-20 HX EXT SEMS 8
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 66Z-DRSX
