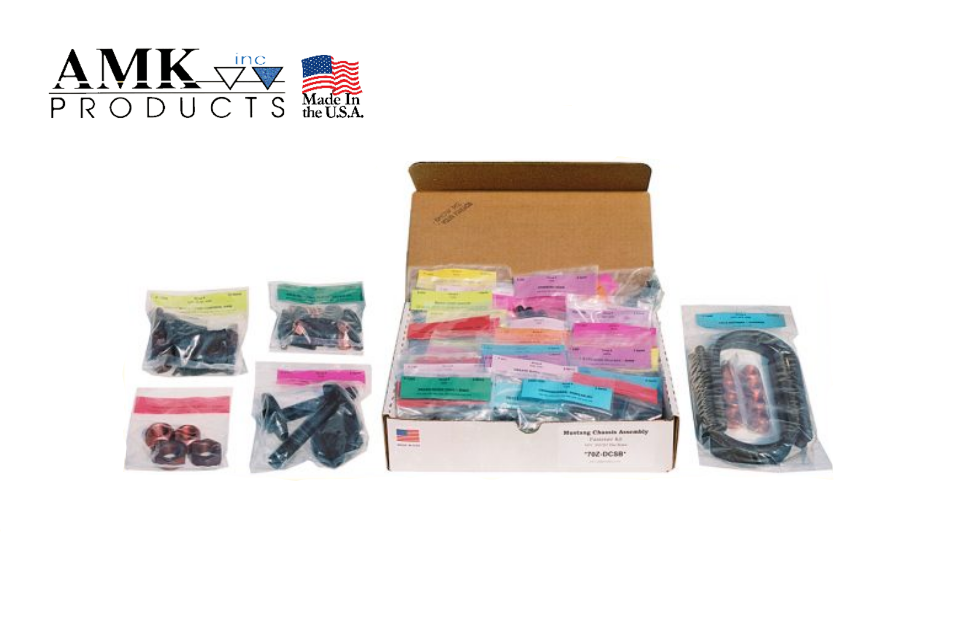

1966 Ford Fairlane 289 w/Drum Front Brakes Chassis Master Bolt Kit 316 Pcs - AMK

1966 Ford Fairlane 289 w/Drum Front Brakes Chassis Master Bolt Kit 316 Pcs - AMK

$366.67 USD
$0.00 USD $366.67 USD
Sale Sold out
1966 Ford Fairlane 289 w/Drum Front Brakes Chassis Master Bolt Kit 316 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    66O-DRSB 1 Master Chassis Kit, 1966 Fairlane Drum Brake 289 ** contains the sub-kits listed below ** 316
    F-746 ACCEL BELLCRANK > FIREWALL - 8 CYL HXWA A SCREWS 3
    F-3441 AXLE HOUSING > SPRINGS 6 3/4" U-BOLTS, FLNG NUTS 12
    F-1439 AXLE RETAINER PLATES - 8 CYL T-BOLTS, CAD LOCK NUTS 16
    F-1616 BRAKE ASSEMBLY (front drum) > SPINDLE T-BOLTS, LOCK NUTS 16
    F-1478 BRAKE BOOSTER > FIREWALL HX SPLIT SEMS, FLNG NUTS 5
    F-3911 BRAKE CABLES > BODY RETAINING CLIPS, NUTS 6
    F-579 BRAKE DRUM RETAINERS GREEN PUSH ON RETAINERS 6
    F-1150 BRAKE HOSE BRKTS (Fr) > BODY HX HD C SCREWS 2
    F-576 BRAKE HOSES > BRACKET U-CLIPS 3
    F-670 BRAKE LIGHT SWITCH RETAINING PIN 1
    F-594 COIL SPRING SEATS - NUTS ONLY 3/8-24 MARSDEN NUTS 4
    F-3913 CONTROL ARMS (LWR) GR-8 CAM BOLTS, NUTS, WA'S 8
    F-3658 CONTROL ARMS (UPR) GR-8 1/2-20 KNURLED BOLTS, FLNG NUTS 8
    F-598 DIFFERENTIAL CARRIER > HOUSING CAD LOCK NUTS, COPPER WA'S 20
    F-1273 DRIVESHAFT - V8, 6 CYL 67-68 A/T, All 69 > 5/16" U-BOLTS, LOCK NUTS 6
    F-3899 ENG BODY BRACKETS - 289 HX BOLTS, FLNG NUTS 12
    F-1310 ENG INSULATOR > BLOCK - 260/289 HX BOLTS, SPLIT WA'S 8
    F-1646 GAS TANK HXWA AB SCREWS 14
    F-3910 GAS TANK FILLER NECK HXWA A SCREWS 5
    F-571 GREASE PLUGS, CHASSIS HX PLUGS 9
    F-351 IDLER ARM HX BOLTS "F", LOCK NUTS, CLIPPED WA'S 6
    F-1065 LEAF SPRING MOUNTING @ FRONT POINTED HX BOLTS, FLNG NUTS, WA'S 6
    F-1474 MASTER CYLINDER w POWER BRAKES HX NUTS, SPLIT WA'S 4
    F-1431 MASTER CYLINDER w/o POWER BRAKES HX SPLIT SEMS 2
    F-508 P/S CYLINDER BRACKET > BODY HX BOLTS "F", LOCK NUTS, WA'S 7
    F-1803 P/S HOSE SUPPORT INSULATOR RETAINER HXWA F SCREW 1
    F-1333 PARKING BRAKE CONTROL > BODY HXWA SRTD SCREWS 3
    F-1390 PITMAN ARM > GEAR BOX w 1 1/8" SHAFT 1 5/16 AF HX JAM NUT, SPLIT WA 2
    F-1214 PROPORTIONING VALVE > APRON 5/16-18 HXWA F SCREW 1
    F-664 SHACKLE ASSY (Rr) - NUTS ONLY MARSDEN NUTS 4
    F-3907 SHOCK BRACKETS (Fr) LOW HD CRG BOLTS, EXT KEPS NUTS 12
    F-1204 STABILIZER BAR (Fr) BRACKETS HX BOLTS, LOCK NUTS 8
    F-2945 STABILIZER BAR (Fr) END LINKS BLTS, RTNRS, BSHNGS, SPACERS, NUTS 22
    F-349 STEERING GEAR BOX HX BOLTS, CLIPPED FLAT & SPLIT WA'S 9
    F-317 STEERING LINKAGE w PS SLOTTED NUTS, COTTER PINS, FLAT WA 23
    F-659 STRUT ROD THREADED ENDS > BODY LOCK NUTS 4
    F-1463 STRUT RODS > LWR CONTROL ARM 7/16-20 KNRLD BOLTS, LOCK NUTS 8
    F-1486 SUSP BUMPER (Rr) 65-66 V8, 67-68 289-2V HX SCREWS 2
    F-2946 SUSPENSION BUMPERS (Fr) EXT KEPS NUTS 2
    F-3903 TRANS CROSSMEMBER POINTED BOLTS, SLOT NUTS, WA'S, PINS 8
    F-3905 TRANS INSULATOR - All POINTED HX BOLTS, NUTS, WA'S 10
    F-3912 WHEEL CYLINDERS (4) - 250 & All 8 CYL 5/16-18 HX EXT SEMS 8
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 66O-DRSB
