1965 1966 1967 Chevy Chevelle 396 w/Drum Brakes Chassis Master Bolt Kit 344 Pcs

1965 1966 1967 Chevy Chevelle 396 w/Drum Brakes Chassis Master Bolt Kit 344 Pcs

$315.99 USD
$0.00 USD $315.99 USD
Sale Sold out

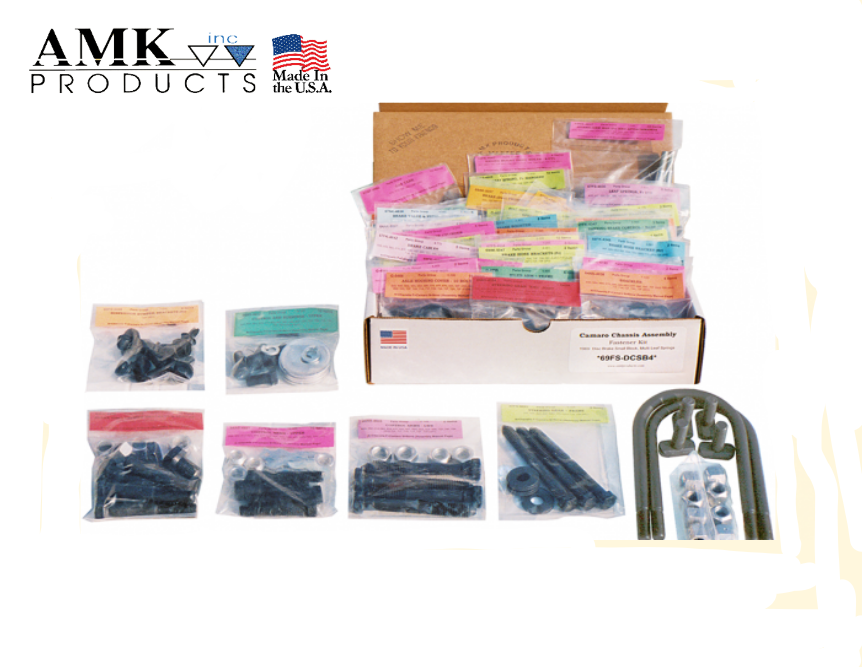

1965 1966 1967 Chevrolet Chevelle 396 w/Drum Front Brakes Chassis Master Bolt Kit 344 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    65AS-BB 1 Master Chassis Kit, 1965-66 Drum Brake BB Chevelle ** contains the sub-kits listed below ** 344
    G-5623 ACCELERATOR LEVER & SUPPORT HX BOLT, HXWA AB SCREWS, WA'S, NUT 6
    G-5007 AXLE RETAINER PLATES GR-8 HX BOLTS, NUTS, SPLIT WA'S 24
    G-4738 BRAKE BOOSTER HX NUTS, SPLIT WA'S 8
    G-4740 BRAKE BOOSTER HOSE FLAT WOUND SPRING CLAMPS (Black) 2
    G-4642 BRAKE CABLES WIRE TYPE RETAINERS, HX NUTS 5
    G-4705 BRAKE DISTRIBUTION BLOCK TO FRAME, HX C SCREW. 1
    G-5620 BRAKE HOSE BRACKETS (Fr) > FRAME HX C SCREWS 2
    G-4641 BRAKE HOSE RETAINERS U-RETAINERS 4
    G-6992 BRAKE PLATE ASSEMBLY (Fr Drum) > SPINDLE 7/16" SIZE GR-8 HX BOLTS, LOCK NUTS 8
    G-4612 CONTROL ARM CROSS SHAFT (UPR) RETAINERS, HX BOLTS "SSC", WA'S 12
    G-4608 CONTROL ARMS (LWR) POINTED BOLTS, LOCK NUTS 8
    G-4609 CONTROL ARMS (Rr) GR-8 POINTED BOLTS, LOCK NUTS 16
    G-5539 CONTROL ARMS (Rr) REINFORCEMENTS HARDENED FLAT WA'S 2
    G-4627 CONTROL ARMS (UPR) GR-8 KNURL BOLTS, LOCK NUTS, SHIMS 18
    G-5467 DIFFERENTIAL COVER - 12 BOLT 5/8" L SRTD FLNG SCREWS "E" 12
    G-4629 DRIVESHAFT > REAR KNUCKLE U-BOLTS, NUTS, WA'S 10
    G-5492 ENGINE MOUNT THRU - V8 (A only) POINTED HX BOLTS, WA'S 4
    G-4651 ENGINE MOUNTS > BLOCK - V8 HX SPLIT SEMS 6
    G-4597 ENGINE MOUNTS > FRAME GR-5 HX BOLTS, FLAT WA'S, NUTS 21
    G-5573 EXHAUST HANGERS - DUAL HXWA C SCREWS, RETAINERS 10
    G-5056 FUEL HOSES FLAT WOUND SPRING CLAMPS (Yellow) 4
    G-4657 GAS TANK CRG BOLTS, NUTS 4
    G-4669 GREASE FITTINGS STRAIGHT STYLE 10
    G-4265 IDLER ARM > FRAME GR-8 HX BOLTS, WA'S, NUTS 6
    G-4635 MASTER CYLINDER HX NUTS, SPLIT WA'S 4
    G-4829 MASTER CYLINDER PUSH ROD > PEDAL RETAINING CLIP 1
    G-5489 PARKING BRAKE CONTROL > DASH HX SPLIT SEMS, FLNG NUTS, SEALER 5
    G-4668 PITMAN ARM > GEAR BOX HX NUT, SPLIT WA 2
    G-4585 SHOCKS (Fr) - LWR MOUNTING HX PP CONI SEMS 4
    G-5483 SHOCKS (Rr) BOLTS, LOCK NUTS, FLAT & SPLIT WA'S 16
    G-4694 SPEDOMETER CABLE > M/T, PG & some M38 1/4-20 X 5/8 HX SPLIT SEMS, RETAINER 2
    G-5485 SPRINGS (Rr) - CLAMPS HX BOLTS, NUTS, FLAT & SPLIT WA'S 8
    G-4628 STABILIZER BAR (Fr) BRACKETS HXWA C SCREWS 4
    G-5481 STABILIZER BAR (Fr) END LINKS BOLTS, RETAINERS, BUSHINGS, NUTS 22
    G-5600 STABILIZER BAR (Rr) HX BOLTS, NUTS 8
    G-4354 STEERING GEAR "RAG" JOINT 12 PT BOLT ONLY 1
    G-5180 STEERING GEAR BOX > FRAME GR-8 HX BOLTS, FLAT WA'S 6
    G-4615 STEERING LINKAGE & BALL JOINTS SLOTTED NUTS, COTTER PINS 20
    G-4841 STEERING SHAFT > COUPLING HX NUTS, SPLIT WA'S 4
    G-4596 SUSPENSION BUMPERS (Fr) HX NUTS 2
    G-4169 TRANS CROSSMEMBER HX BOLTS, WA'S (RH SIDE), NUTS 14
    G-4603 TRANS INSULATOR HX BOLTS, FLAT & SPLIT WA'S 10
    G-6582 WHEEL CYLINDERS (4) HX INT TOOTH SEMS 8
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-3 weeks.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 65AS-BB
