1964 1965 Chevy Nova 283/327 w/Drum Brakes Chassis Master Bolt Kit 449 Pcs - AMK

1964 1965 Chevy Nova 283/327 w/Drum Brakes Chassis Master Bolt Kit 449 Pcs - AMK

$399.99 USD
$0.00 USD $399.99 USD
Sale Sold out

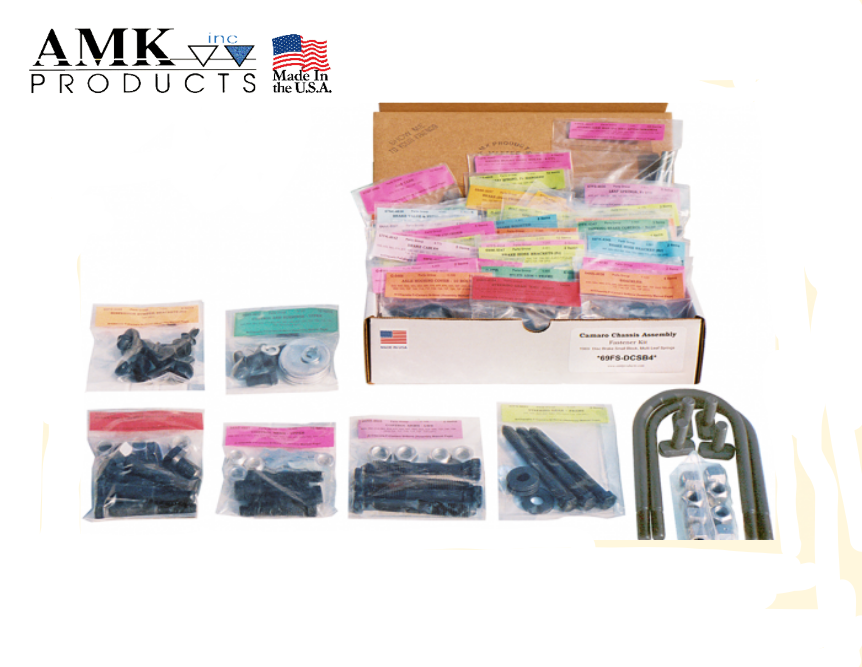

1964 1965 Chevrolet Nova 283/327 w/Drum Front Brakes Chassis Master Bolt Kit 449 Pcs - AMK
  • The authentic hardware you need to properly reassemble your car's chassis in one package!
  • Master kits will provide about 85% of the fasteners found on your vehicle.
  • We highly recommend that you reference the Factory Assembly Manuals!
  • PART # APPLICATION NOTES PCS
    64NS-SB 1 Master Chassis Kit, 1964-65 Nova ** contains the sub-kits listed below ** 449
    G-5623 ACCELERATOR LEVER & SUPPORT HX BOLT, HXWA AB SCREWS, WA'S, NUT 6
    G-5904 AXLE HSNG > SPRINGS - MONO SPRING SPECIAL GR-8 LOCK NUTS & T BOLTS 16
    G-5007 AXLE RETAINER PLATES GR-8 HX BOLTS, NUTS, SPLIT WA'S 24
    G-4738 BRAKE BOOSTER HX NUTS, SPLIT WA'S 8
    G-4740 BRAKE BOOSTER HOSE FLAT WOUND SPRING CLAMPS (Black) 2
    G-6017 BRAKE CABLES & BRACKETS RETAINERS, HX C SCREWS, NUTS 9
    G-6015 BRAKE HOSE BRACKET (Rr) HX C SCREWS 2
    G-6014 BRAKE HOSE BRACKETS (Fr) > BODY HX BOLTS, SPLIT WA'S, NUTS 12
    G-6013 BRAKE HOSE RETAINERS w FR DRUM U-RETAINERS 6
    G-6992 BRAKE PLATE ASSEMBLY (Fr Drum) > SPINDLE 7/16" SIZE GR-8 HX BOLTS, LOCK NUTS 8
    G-6002 COIL SPRING SEATS 3/8-24 NUTS, SPLIT WA 8
    G-5999 CONTROL ARMS (LWR) CAM BOLTS, WA'S, NUTS 8
    G-5998 CONTROL ARMS (UPR) GR-8 KNURL BOLTS, LOCK NUTS 8
    G-5466 DIFFERENTIAL COVER - 10 BOLT 7/8" L HXWA MACHINE SCREWS 10
    G-4629 DRIVESHAFT > REAR KNUCKLE U-BOLTS, NUTS, WA'S 10
    G-4650 ENGINE MOUNT THRU - V8 (67-68F & all N) POINTED BOLTS, WA'S, MARSDEN NUTS 8
    G-4651 ENGINE MOUNTS > BLOCK - V8 HX SPLIT SEMS 6
    G-6021 ENGINE MOUNTS > FRAME - V8 (N only) GR-8 BOLTS, ZDC NUTS, WA'S 12
    G-6105 EXHAUST HANGERS - DUAL HX BOLTS, HX SPLIT SEMS, NUTS, WA'S 20
    G-4643 FUEL FILLER NECK > BODY HXWA B SCREWS 3
    G-5056 FUEL HOSES FLAT WOUND SPRING CLAMPS (Yellow) 4
    G-6035 GAS TANK HX BOLTS, NUTS, SPACERS 8
    G-4669 GREASE FITTINGS STRAIGHT STYLE 10
    G-6038 IDLER ARM > FRAME HX BOLTS, NUTS, WA'S 16
    G-6010 LEAF SPRINGS, Fr EYE HX BOLTS, NUTS, WA'S 8
    G-4635 MASTER CYLINDER HX NUTS, SPLIT WA'S 4
    G-4829 MASTER CYLINDER PUSH ROD > PEDAL RETAINING CLIP 1
    G-6016 PARKING BRAKE CONTROL > DASH PH TRUSS CONI SEMS 1
    G-4668 PITMAN ARM > GEAR BOX HX NUT, SPLIT WA 2
    G-4838 SHACKLES 11/16" AF MARSDEN NUTS ONLY 4
    G-6004 SHOCK BRACKETS (Fr) CRG BOLTS, NUTS, WA'S 24
    G-6012 SHOCK BRACKETS (Rr) > BODY HX SPLIT SEMS 4
    G-6005 SHOCKS (Fr) - LWR MOUNTING GROMMETS, NUTS, WA'S 20
    G-6006 SHOCKS (Fr) - UPR MOUNTING GROMMETS, RETAINERS, 3/8-24 NUTS 10
    G-6011 SHOCKS (Rr) LWR MOUNTING HX BOLTS, NUTS, SPLIT WA'S 6
    G-4694 SPEDOMETER CABLE > M/T, PG & some M38 1/4-20 X 5/8 HX SPLIT SEMS, RETAINER 2
    G-6009 STABILIZER BAR (Fr) BRACKETS HX BOLTS, SPLIT & FLAT WA'S 12
    G-4837 STABILIZER BAR (Fr) END LINKS BLTS, RTNRS, BSHNGS, SPACERS, NUTS 22
    G-6039 STEERING GEAR > FRAME HI-HX BOLTS, WA'S, NUTS 15
    G-6121 STEERING LINKAGE & BALL JOINTS w PS SLOTTED NUTS, COTTER PINS 24
    G-6000 STRUT ROD THREADED ENDS > BODY 11/16-18 THREAD NUTS ONLY 4
    G-6001 STRUT RODS > LWR CONTROL ARM HX BOLTS, NUTS, WA'S 12
    G-6007 SUSPENSION BUMPER BRACKETS (Fr) HX CONI SEMS, NUTS 24
    G-6008 SUSPENSION BUMPERS (Fr) NUTS, SPLIT WA'S 4
    G-6022 TRANS CROSSMEMBER HX BOLTS, SRTD FLNG NUTS 4
    G-6023 TRANS INSULATOR HX BOLTS, FLAT & SPLIT WA'S 10
    G-6582 WHEEL CYLINDERS (4) HX INT TOOTH SEMS 8
  • This product will be made to order and drop shipped from the manufacturer and will ship in 1-7 business days.
  • If you have any questions, please do not hesitate to message us. We are very responsive and look forward to helping you in any way we can!
  • Proudly made in the USA by AMK: 64NS-SB
